Removal And Installation: Installation

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only required if previously removed.
CAUTION: Make sure that new sealing washers are installed.

NOTE: This step is only required if previously removed.

Renew Part: Fuel injector seals Quantity: 1 .

Renew Part: Fuel injector washer(s) Quantity: 1 .
CAUTION: Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.

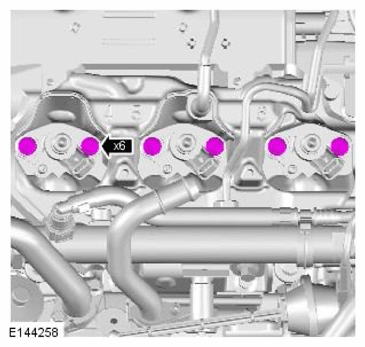

NOTE: Tighten the retaining bolts evenly and progressively.

Torque Specification: 9 Nm
CAUTION: Make sure that a new component is installed.

Renew Part: Fuel injector high pressure pipe(s) Quantity: 1 .
- Stage 1:Tighten the high-pressure fuel supply line unions at the fuel rail to 15Nm.
- Stage 2: Tighten the high-pressure fuel supply line unions at the injector to 15Nm.
- Stage 1: Tighten the high-pressure fuel supply line unions at the fuel rail to 35Nm.
- Stage 2: Tighten the high-pressure fuel supply line unions at the injector to 35Nm.
Torque Specification: 10 Nm
NOTE: Make sure that the fuel injector return line has a maximum of 8 uses.
Torque Specification: 10 Nm
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Refer to: SECONDARY BULKHEAD CENTER PANEL - TDV6 3.0L DIESEL
Refer to: SPECIFICATIONS
If a new unit is installed, configure using the approved diagnostic tool.
