Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: ENGINE COVER - TDV6 3.0L DIESEL

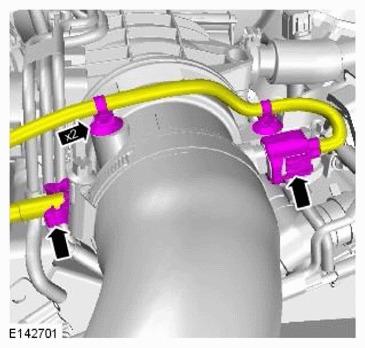

  2. G11710163

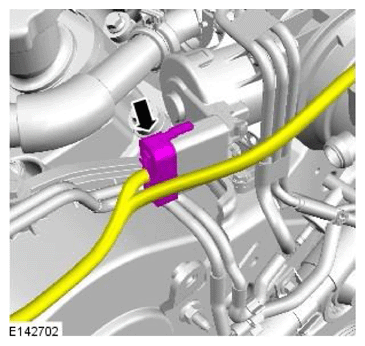

  3. G11710164

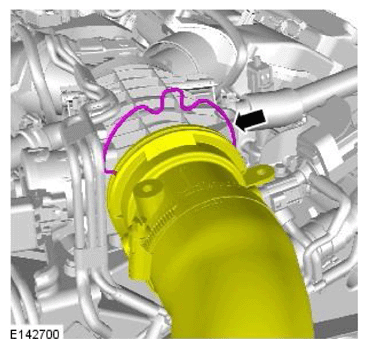

  4. G11710165

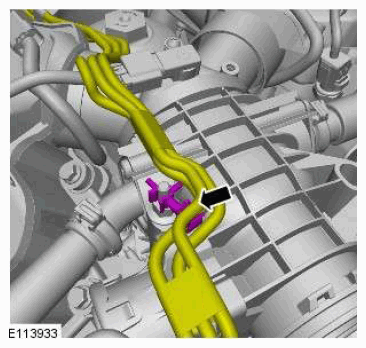

  5. G11601550
  6. G11601551

    Torque Specification: 10 Nm

  7. NOTE: If equipped.

    Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE OUTLET TUBE

  8. CAUTION: Install a new clamp. Close the clamp to the first audible click by hand. Making sure that the clamp is in a central position to the joint, close to the second audible click using a suitable tool.

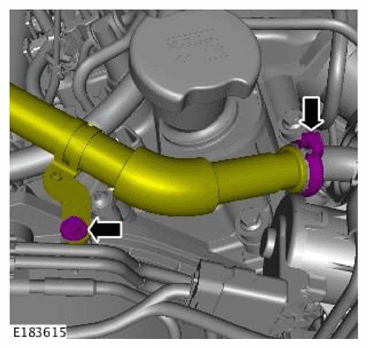

    G11710168

    Torque Specification: 5 Nm

  9. G11601552

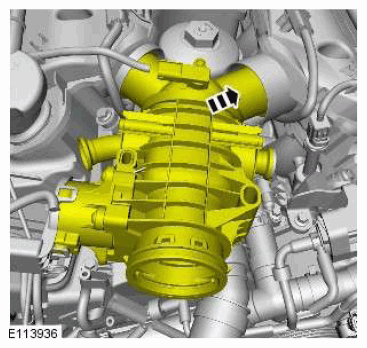

  10. G11601553
  11. G11601554
  12. CAUTION: Install the new seals.
    G11601555
