Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: FUEL INJECTION COMPONENT CLEANING
  2. Refer to: REAR END ACCESSORY DRIVE
  3. Refer to: CRANKCASE VENT OIL SEPARATOR

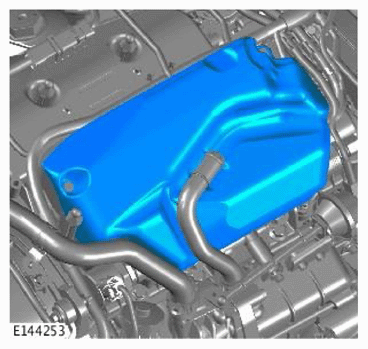

  4. G11709953

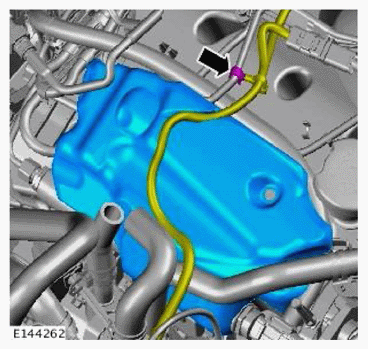

  5. G11709980
  6. CAUTION: Be prepared to collect escaping fuel.

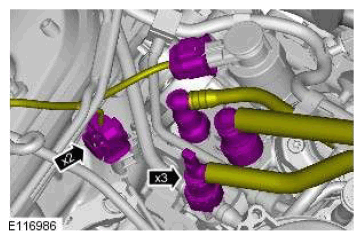

    G11601321

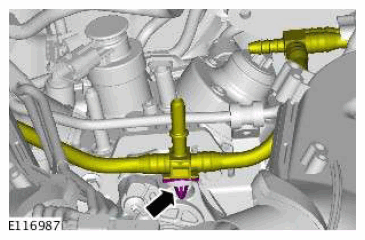

  7. CAUTION: Be prepared to collect escaping fuel.
    G11601322

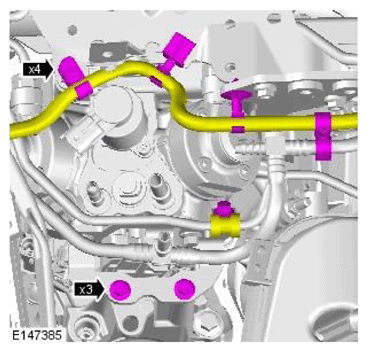

  8. G11710010
  9. CAUTION: Be prepared to collect escaping fuel.

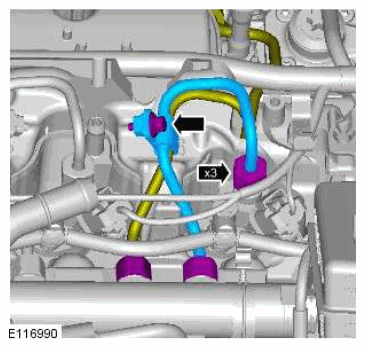

    G11601326
  10. CAUTION: Be prepared to collect escaping fuel.

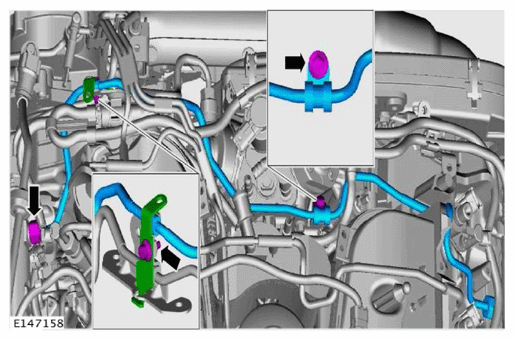

    G11710012
  11. CAUTION: Be prepared to collect escaping fuel.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11601328
  12. CAUTION: Be prepared to collect escaping fuel.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11601329
  13. CAUTION: Be prepared to collect escaping fuel.

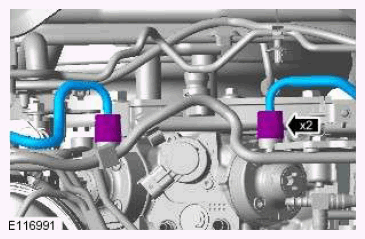

    G11601330
  14. NOTE: Fuel injection pump pulley shown removed for clarity.
    G11601331

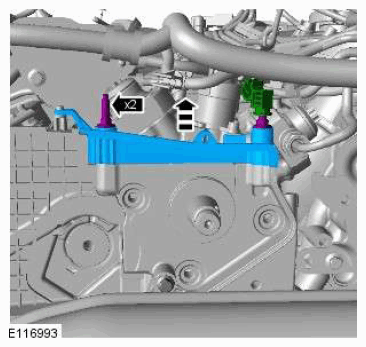

  15. NOTE: Fuel injection pump pulley shown removed for clarity.
    G11601332

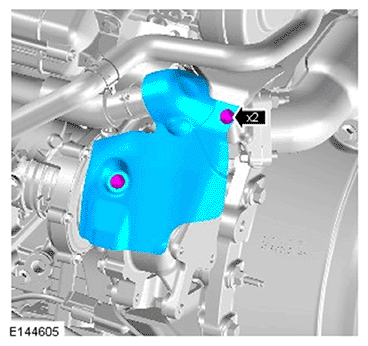

  16. NOTE: If equipped.
    G11695680
  17. NOTE: If equipped.

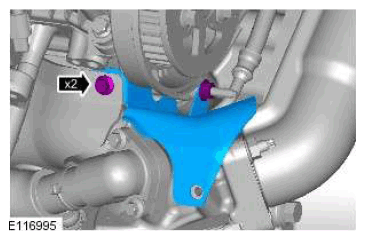

    G11601334
  18. G11601763

    Special Tool(s): JLR-303-1523

  19. G11601764

    Special Tool(s): JLR-303-1523

  20. G11601765

    Remove the camshaft rear pulley retaining bolt.

    Special Tool(s): 303-1145/2

  21. Remove the special tools.
  22. G11601766

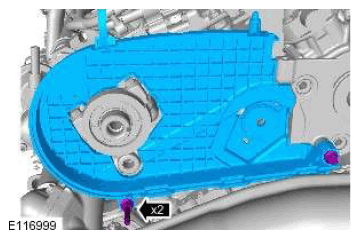

  23. G11601339

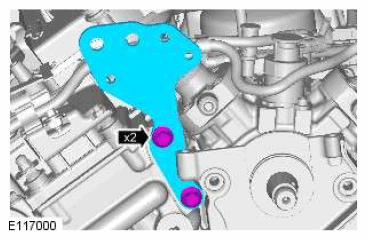

  24. G11601340

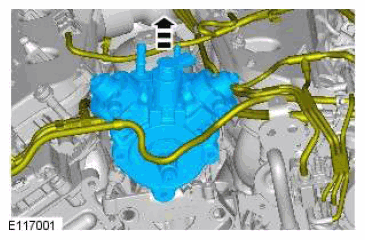

  25. G11601341
  26. NOTE: Do not disassemble further if the component is removed for access only.

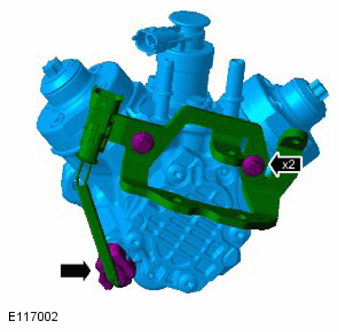

    G11769695

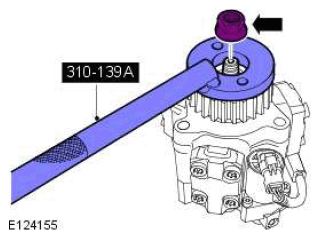

  27. G11601343

    Special Tool(s): 310-139A

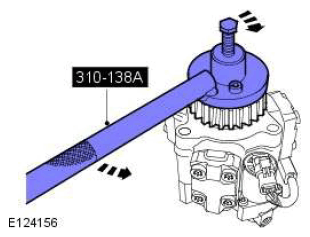

  28. G11601344

    Special Tool(s): 310-138A
