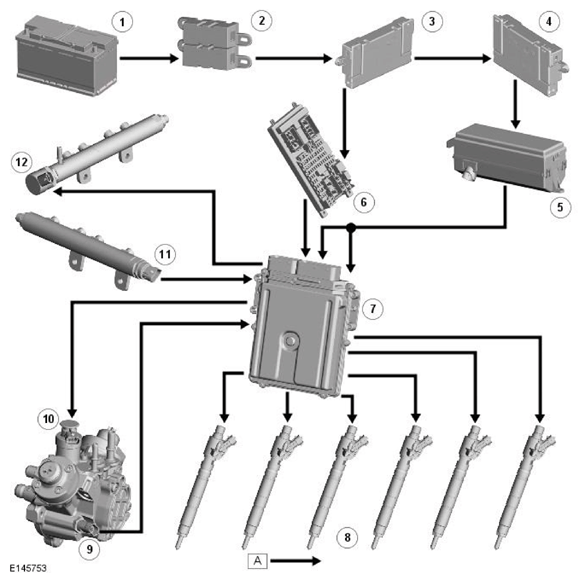

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box 2 (BJB2) |
| 3 | Battery Junction Box (BJB) |
| 4 | Auxiliary Junction Box (AJB) |
| 5 | Engine Junction Box (EJB) |
| 6 | Central Junction Box (CJB) |
| 7 | Engine Control Module (ECM) |
| 8 | Fuel injector (6 off) |
| 9 | Fuel temperature sensor |
| 10 | Fuel metering valve |
| 11 | Fuel Rail Pressure (FRP) sensor |
| 12 | Fuel rail Pressure Control Valve (PCV) |
