Control Diagram

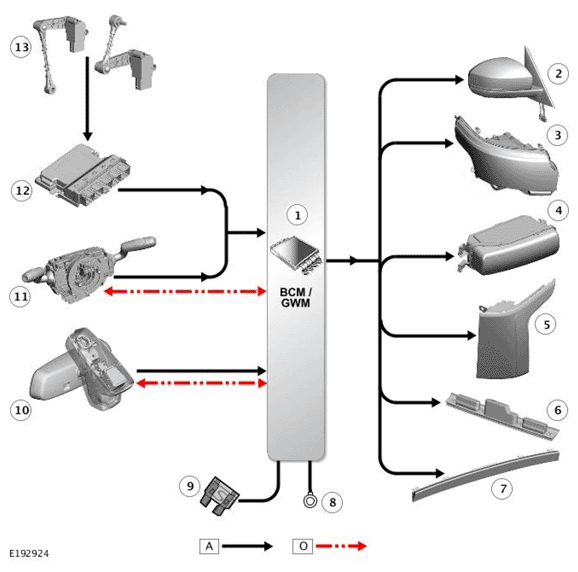

Exterior Lighting Control Diagram
A = HARDWIRED: O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) |
| 2 | Side repeater lamp in door mirror |
| 3 | Headlamp assembly |
| 4 | Front fog lamp |
| 5 | Tail lamp assembly |
| 6 | License plate lamps |
| 7 | High Mounted Stop Lamp (HMSL) |
| 8 | Ground |
| 9 | Fuse |
| 10 | Rain/light sensor |
| 11 | Clockspring (CLKSPRNG) |
| 12 | Chassis Control Module (CHCM) |
| 13 | Height sensor |
