Description And Operation: Description

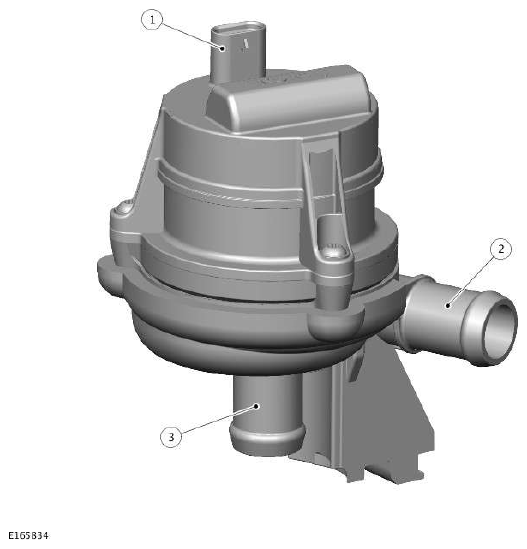

CHARGE AIR COOLANT PUMP
| ITEM | DESCRIPTION |
|---|---|
| 1 | Electrical Connector |
| 2 | Coolant Outlet Connection |
| 3 | Coolant Intake Connection |
The charge air coolant pump is an electric pump attached to the rear left side of the engine cooling fan shroud. Hoses connect the intake of the charge air coolant pump to the left charge air radiator, and the outlet to the charge air coolers. An electrical connector provides the interface between the motor of the charge air coolant pump and the vehicle wiring.

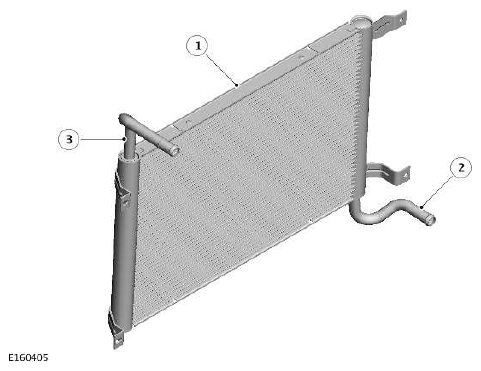

CHARGE AIR RADIATOR
| ITEM | DESCRIPTION |
|---|---|
| 1 | Charge air radiator |
| 2 | Charge air radiator outlet connection |
| 3 | Charge air radiator inlet connection |
The charge air radiator is located at the front of the cooling pack. The charge air radiator is attached to the radiator using four fixing bolts.
CHARGE AIR COOLER
A charge air cooler is installed in each intake manifold. For additional information, refer Intake Air Distribution And Filtering (Description And Operation)
