Removal And Installation: Notes

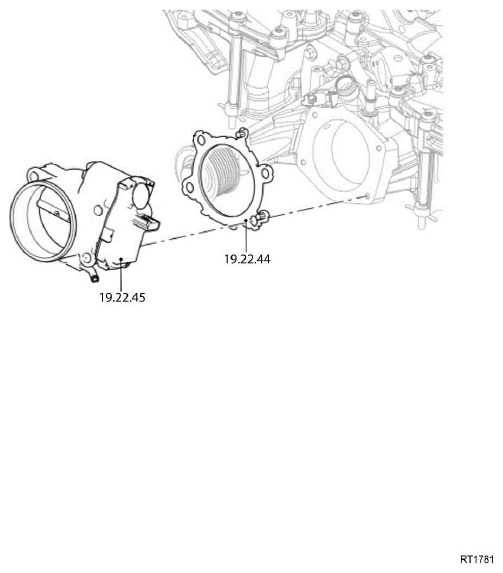

19.22.45 THROTTLE BODY - RENEW 3000 CC, AJ V6 (AJ126) 0.8
G11607785

PART(S)

STEP REPLACE PART/RENEW PART PART NAME
Removal Step 6 Renew Part Engine coolant outlet seal
Removal Step 7 Renew Part Engine coolant outlet seal
