Special Tool(S): Removal

CAUTION:
  • Make sure that tools and equipment are clean and free of foreign material and lubricant.
  • Always carry out the cleaning process before carrying out any repairs to the fuel injection system components. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  2. Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol .
  3. Refer to: Engine Cover - V6 S/C 3.0L Petrol .
  4. Disconnect the battery ground cable.

    Refer to: Specifications .

  5. Refer to: Air Cleaner Outlet Pipe T-Connector .
  6. G11607590
  7. refer to: Right Air Cleaner .
  8. G11607591
  9. NOTE: Left-hand drive vehicles.

    refer to: Battery .

  10. NOTE: Right-hand drive vehicles.
    G11597327
  11. G11607593
  12. G11607594
  13. G11607595
  14. CAUTION: Be prepared to collect escaping coolant.
    G11607322
  15. G11607320
  16. G11607534
  17. CAUTION: Be prepared to collect escaping coolant.
    G11607321
  18. G11607535
  19. G11607545
  20. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
    CAUTION:
    • Make sure that the fuel line union does not rotate.
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11606983
  21. G11607603

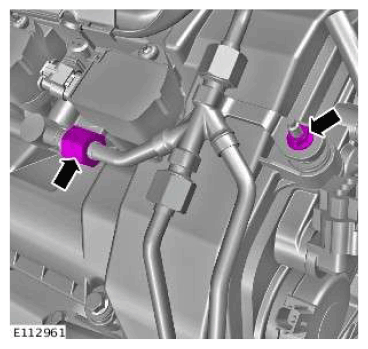

  22. CAUTION:
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11607604
  23. NOTE: If equipped.
    G11607605
  24. NOTE: LH illustration shown, RH is similar.
    G11607547
  25. NOTE: LH illustration shown, RH is similar.
    G11607548
  26. CAUTION: Make a note of the fuel injector clamp alignment to the fuel rail prior to removal.
    NOTE: LH illustration shown, RH is similar.
    G11607549

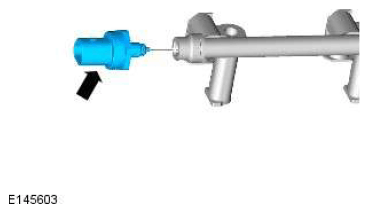

  27. CAUTION: Be prepared to collect escaping fuel.
    NOTE: Do not disassemble further if the component is removed for access only.
    G11607609

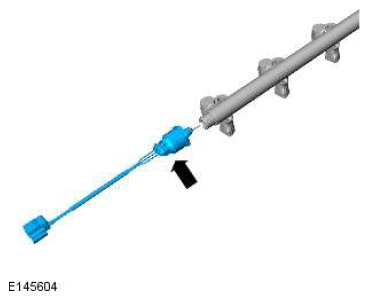

  28. NOTE:
    • Do not disassemble further if the component is removed for access only.
    • If equipped.
    G11607610
  29. CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.
    • Make sure that all open ports are covered to prevent any foreign material ingress.
    G11607611

    Special Tool(s):  310-197

  30. CAUTION: If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    G11587674
  31. CAUTION:
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
    G11607552
  32. CAUTION: Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
    G11607553
  33. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  34. G11606772
  35. G11606773
  36. G11606774
  37. G11601986
  38. G11602000
  39. Refer to: Generator .
  40. G11606720
  41. G11607621
  42. G11607622
  43. G11606777
  44. CAUTION: Use a wooden block to protect the oil pan when supporting the engine.
    G11606753

    Using a suitable hydraulic jack, support the engine.

  45. G11607625
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
CAUTION:
  • Remove and discard the high-pressure fuel supply lines.
  • Be prepared to collect escaping fluids.
  • Make sure that all openings are sealed. Use new blanking caps.
NOTE: Engine shown removed for clarity.
G11606937
