Special Tool(S): Installation
-
CAUTION: Lubricate only the union threads with clean engine oil.NOTE:
- Engine shown removed for clarity.
- Install the bolts and unions finger tight before final tightening.
- Remove and discard the blanking caps.
Torque Specifications:
Stage 1: 45 Nm
Stage 2: 60°

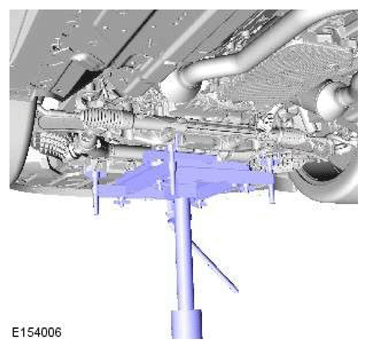

Remove the special tool.
Torque Specification: 100 Nm
-
NOTE: Some components shown removed for clarity.

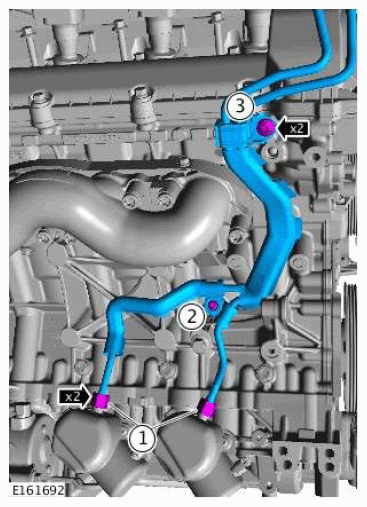

Torque Specifications:
Unions (1) 21 Nm
M6 (2) 11 Nm
M8 (3) 25 Nm

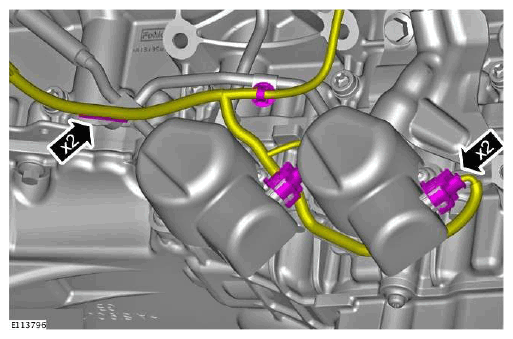

Torque Specification: 10 Nm
Torque Specification: 10 Nm

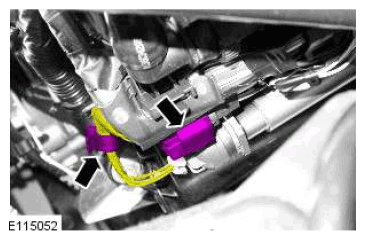

Torque Specification: 10 Nm
- Lower the vehicle.
Special Tool(s): 310-198
Special Tool(s): 310-199
-
CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.
-
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.NOTE: LH illustration shown, RH is similar.
Special Tool(s): 310-200-01
-
CAUTION:
- Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
- When installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.
NOTE: LH illustration shown, RH is similar. -
NOTE: If equipped.
Lubricate with Molycote W15 as shown.
Torque Specification: 33 Nm
Lubricate with Molycote W15 as shown.
Torque Specification: 38 Nm
-
CAUTION:
- If new fuel injectors are installed, a new injector clamp must be installed.
- Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
- Tighten the fuel rail retaining bolts a turn at a time until the correct torque is achieved.
NOTE:- Lubricate the fuel injector O-ring seals with clean engine oil.
- LH illustration shown, RH is similar.
Torque Specification: 20 Nm
-
NOTE: LH illustration shown, RH is similar.
Special Tool(s): 310-200-01
-
NOTE: LH illustration shown, RH is similar.
Torque Specification: 20 Nm
-
NOTE: LH illustration shown, RH is similar.
Special Tool(s): 310-200-01
-
NOTE: LH illustration shown, RH is similar.
Torque Specification: 20 Nm
-
NOTE:
- Tighten the bolts in the indicated sequence.
- LH illustration shown, RH is similar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Torque Specifications:
Bolt 2 30 Nm
Bolt 3 30 Nm
Bolt 1 30 Nm
-
NOTE: LH illustration shown, RH is similar.

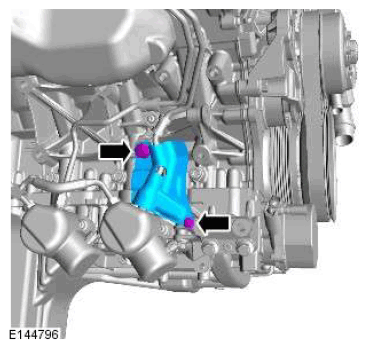

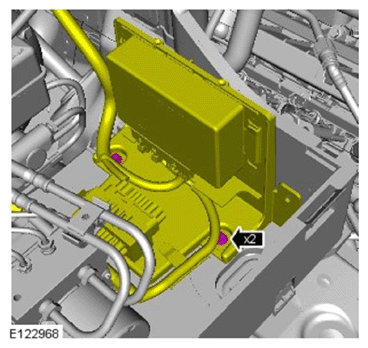

Torque Specification: 8 Nm
-
NOTE: LH illustration shown, RH is similar.
-

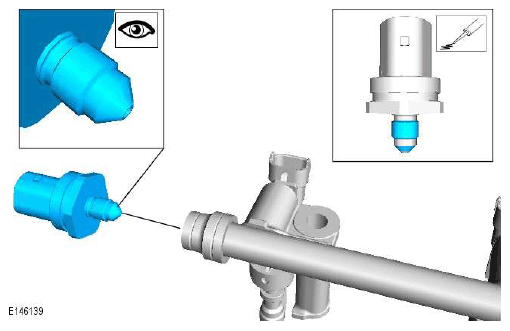

NOTE: If equipped.
-
NOTE: Remove and discard the blanking caps.

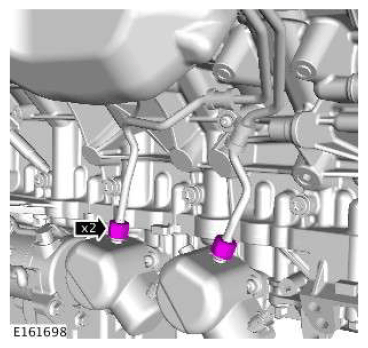

Torque Specifications:
Unions 21 Nm
Nut 6 Nm
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
-

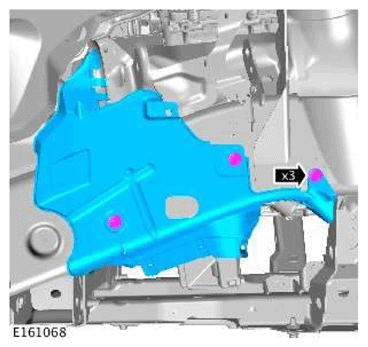

NOTE: Some components shown removed for clarity.
Torque Specification: 21 Nm

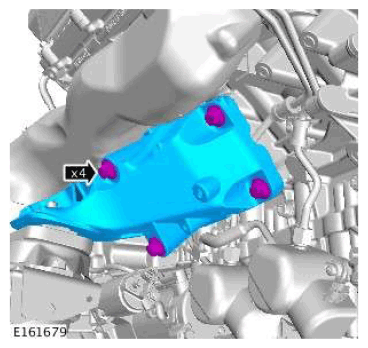

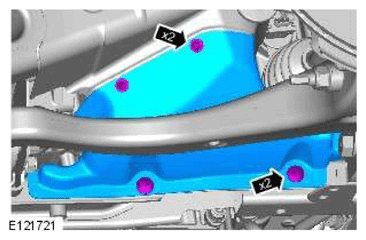

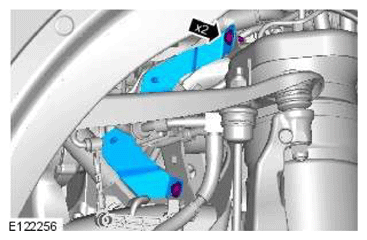

Torque Specifications:
M6 12 Nm
M10 29 Nm

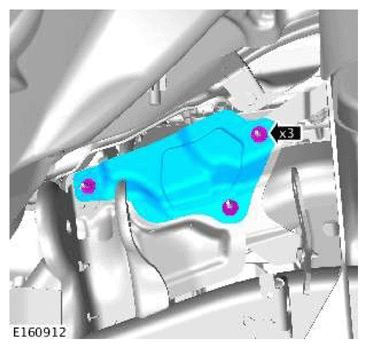

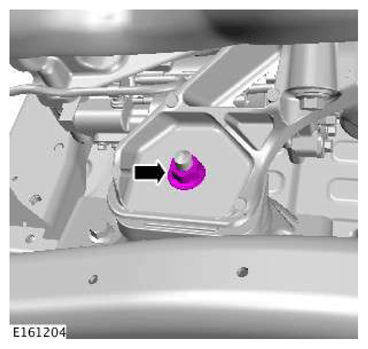

Torque Specification: 25 Nm

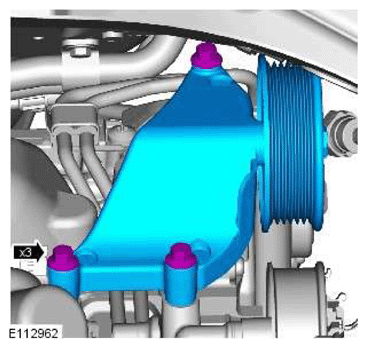

- Refer to: Generator .
- Lower the vehicle.
-
CAUTION: Lubricate only the union threads with clean engine oil.NOTE:
- Install the bolts and unions finger tight before final tightening.
- Remove and discard the blanking caps.
Torque Specifications:
Unions 21 Nm
Bolts 12 Nm
Torque Specification: 21 Nm
Torque Specification: 12 Nm
-

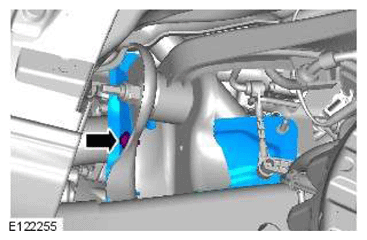

NOTE: Right-hand drive vehicles.

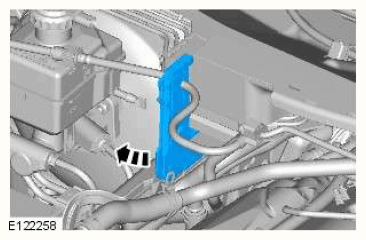

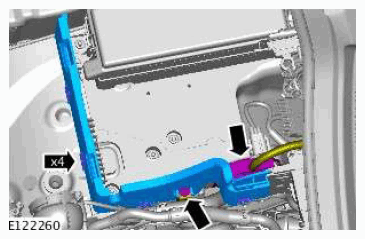

Torque Specification: 9 Nm
-
NOTE: Left-hand drive vehicles.
refer to: Battery .
-
NOTE: All vehicles.

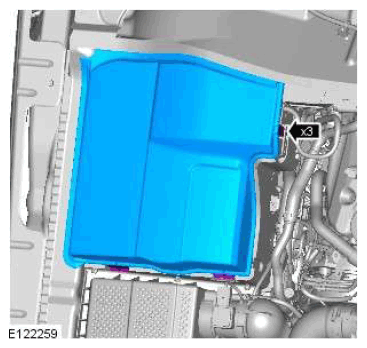

- refer to: Right Air Cleaner .

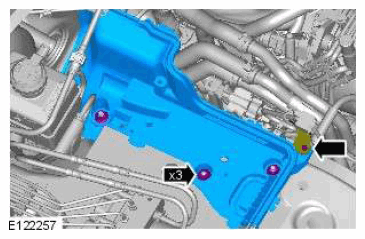

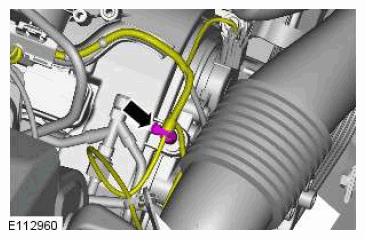

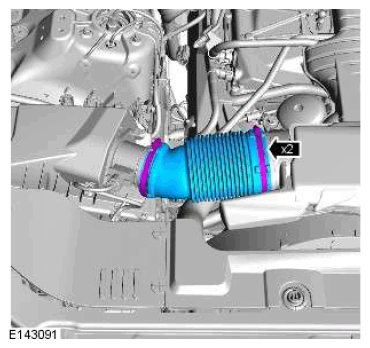

Torque Specification: 3.5 Nm
-
Refer to: Air Cleaner Outlet Pipe T-Connector .
- Connect the battery ground cable.
Refer to: Specifications .
- Refer to: Engine Cover - V6 S/C 3.0L Petrol .
