Special Tool(S): Removal

CAUTION:
  • Make sure that tools and equipment are clean and free of foreign material and lubricant.
  • Always carry out the cleaning process before carrying out any repairs to the fuel injection system components. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .

  2. Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol .
  3. Refer to: Engine Cover - V6 S/C 3.0L Petrol .
  4. refer to: Air Conditioning System Recovery, Evacuation and Charging .
  5. Disconnect the battery ground cable.

    Refer to: Specifications .

  6. Refer to: Air Cleaner Outlet Pipe T-Connector .
  7. CAUTION: Be prepared to collect escaping coolant.
    G11607321
  8. CAUTION: Be prepared to collect escaping coolant.
    G11607322
  9. G11607534
  10. G11607535
  11. G11607536
  12. G11607537
  13. G11607538
  14. refer to: Battery .
  15. NOTE: Right-hand shown, Left-hand similar.
    G11607539
  16. NOTE: Right-hand shown, Left-hand similar.
    G11607540
  17. G11607541
  18. G11607542
  19. G11607320
  20. G11607544
  21. G11607545
  22. WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
    CAUTION:
    • Make sure that the fuel line union does not rotate.
    • Be prepared to collect escaping fluids.
    • Make sure that all openings are sealed. Use new blanking caps.
    G11606983
  23. G11607547
  24. Refer to: Fuel Injection Component Cleaning .
  25. G11607548
  26. CAUTION: Make a note of the fuel injector clamp alignment to the fuel rail prior to removal.
    G11607549
  27. CAUTION:
    • Make sure that the special tool is located correctly to the fuel injector prior to removing the fuel injector.
    • Make sure that the special tool is held square to the fuel injector during removal.
    • Make sure that all open ports are covered to prevent any foreign material ingress.
    NOTE: RH illustration shown, LH is similar.

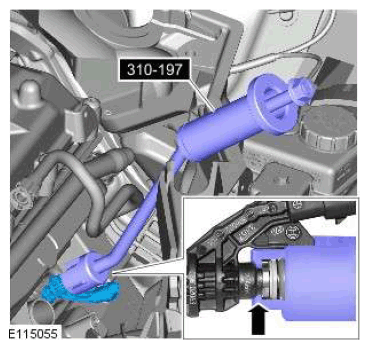

    G11607550

    Special Tool(s):  310-197

  28. CAUTION:
    • If new fuel injectors are installed, a new injector clamp must be installed.
    • If the fuel injector is being removed without a new component being installed, the fuel injector clamp must remain with the fuel injector it is removed with.
    G11587674
  29. CAUTION:
    • Do not use a knife to remove the Teflon seal as damage could occur to the fuel injector.
    • Do not cut the Teflon seal to deep as damage could occur to the fuel injector.
    • Pinch the Teflon seal to allow the tool to cut the Teflon seal without damaging the fuel injector.
    G11607552
  30. CAUTION: Do not use any sharp tools to remove the O-ring seal as damage could occur to the fuel injector.
G11607553
