Special Tool(S): Installation
Special Tool(s): 310-198
Special Tool(s): 310-199
-
CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.
-
CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.
Special Tool(s): 310-200-01
-
CAUTION:
- Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
- When installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.
-
CAUTION:
- If new fuel injectors are installed, a new injector clamp must be installed.
- Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
- Tighten the fuel rail retaining bolts a turn at a time until the correct torque is achieved.
NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.Torque Specification: 20 Nm
Special Tool(s): 310-200-01
Torque Specification: 20 Nm
Special Tool(s): 310-200-01
Torque Specification: 20 Nm
-
NOTE: Tighten the bolts in the indicated sequence.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Torque Specifications:
Bolt 2 30 Nm
Bolt 3 30 Nm
Bolt 1 30 Nm
Torque Specification: 7 Nm
-

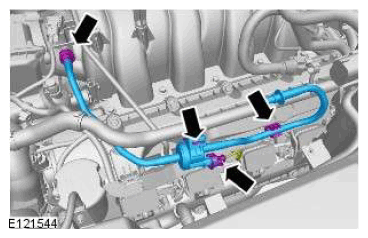

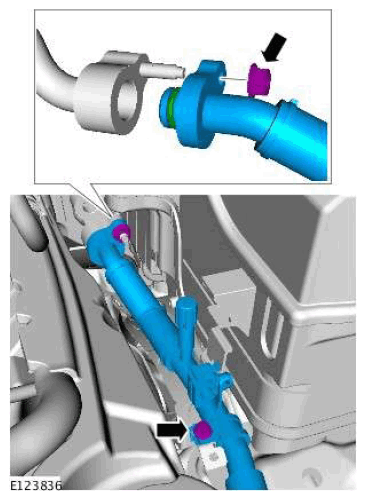

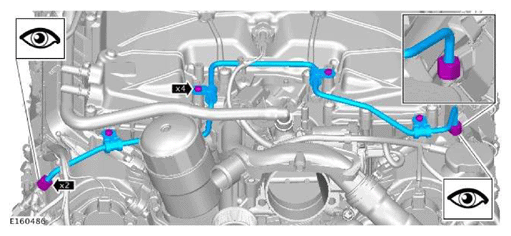

CAUTION: Lubricate only the union threads with clean engine oil.NOTE:
- Do not tighten at this stage.
- Remove and discard the blanking caps.
Torque Specifications:
Unions 21 Nm
Bolts 8 Nm

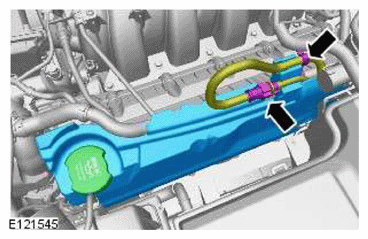

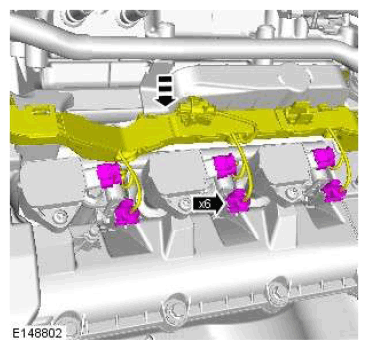

Torque Specification: 12 Nm

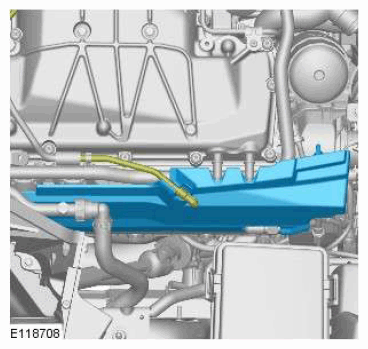

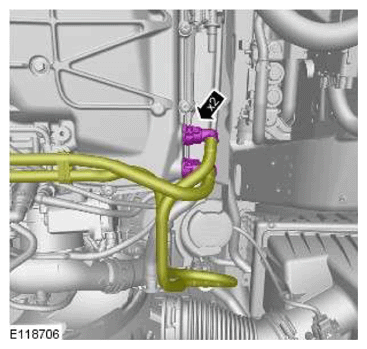

Torque Specification: 12 Nm
-

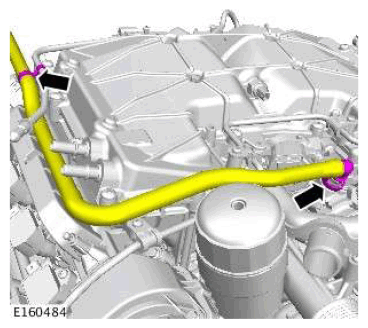

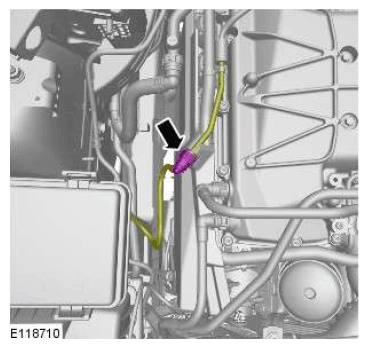

NOTE: Right-hand shown, Left-hand similar.
-

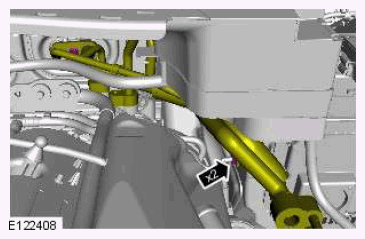

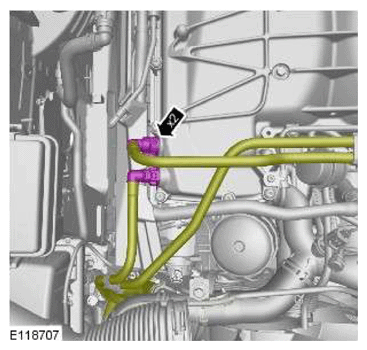

NOTE: Right-hand shown, Left-hand similar.
- refer to: Battery .

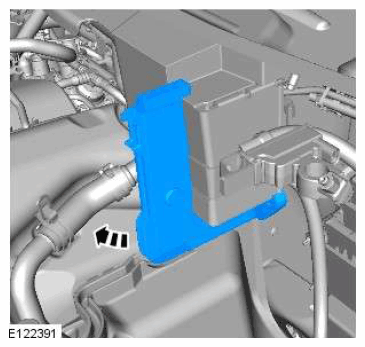

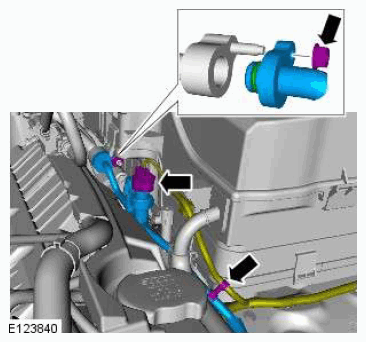

Torque Specification: 12 Nm

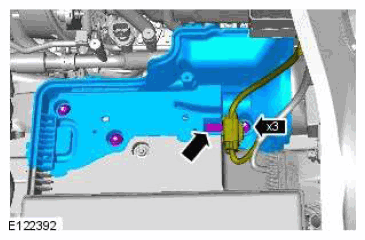

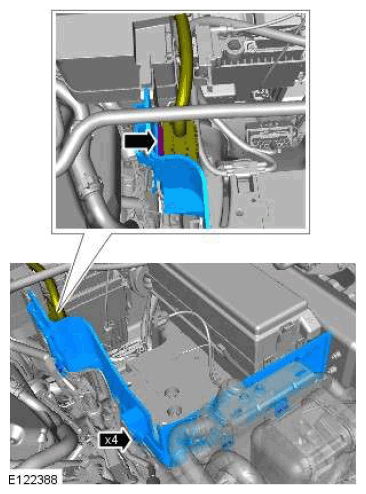

Torque Specification: 12 Nm
- Refer to: Air Cleaner Outlet Pipe T-Connector .

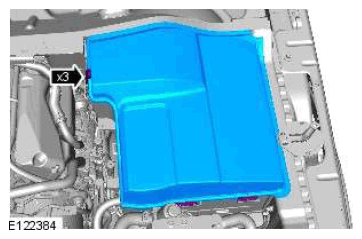

- Connect the battery ground cable.
Refer to: Specifications .
- refer to: Air Conditioning System Recovery, Evacuation and Charging .
- Refer to: Engine Cover - V6 S/C 3.0L Petrol .
