Removal And Installation: Removal

CAUTION: Always carry out the cleaning process before carrying out any repairs to the fuel injection system components. Failure to follow this instruction may result in foreign matter ingress to the fuel injection system.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions .
  2. Refer to: Fuel System Pressure Release - V6 S/C 3.0L Petrol .
  3. Disconnect the battery ground cable.

    Refer to: Specifications .

  4. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  5. Refer to: Engine Undershield .
  6. Refer to: Fuel Injection Component Cleaning .
  7. Refer to: Air Cleaner Outlet Pipe T-Connector .
  8. G11607590
  9. CAUTION: Be prepared to collect escaping fluids.
    G11607321
  10. CAUTION: Be prepared to collect escaping fluids.
    G11607322
  11. CAUTION: Be prepared to collect escaping fluids.
    G11607319
  12. CAUTION: Be prepared to collect escaping fluids.
    G11607320
  13. CAUTION: Be prepared to collect escaping fluids.
    G11607545
  14. CAUTION:
    • Be prepared to collect escaping fluids.
    • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
    G11606983
  15. G11607603
  16. CAUTION:
    • Be prepared to collect escaping fluids.
    • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
    G11607604
  17. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  18. Refer to: Generator .
  19. G11606720
  20. NOTE: Engine shown removed for clarity.
    G11607621
  21. G11607622
  22. G11606777
  23. CAUTION: Use a wooden block to protect the oil pan when supporting the engine.
    G11606753

    Using a transmission jack, support the engine.

    General Equipment:  Transmission jack

  24. G11607625
  25. CAUTION:
    • Be prepared to collect escaping fluids.
    • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
    • Remove and discard the high-pressure fuel supply lines.
    NOTE: Engine shown removed for clarity.
    G11606937
  26. CAUTION:
    • Be prepared to collect escaping fluids.
    • Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
    G11607689

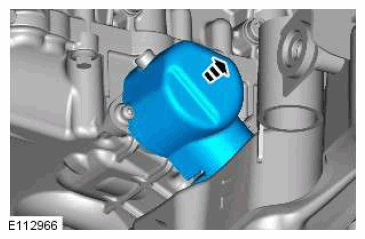

  27. G11607690
  28. CAUTION: Be prepared to collect escaping fluids.
    G11607691

    Loosen the Torx screws a turn each at a time.

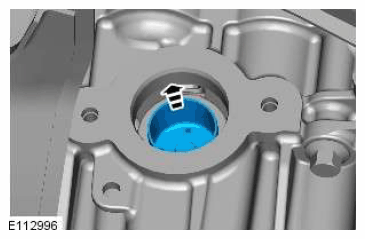

  29. CAUTION: Be prepared to collect escaping fluids.
    G11607746
