Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Fuel Tank .

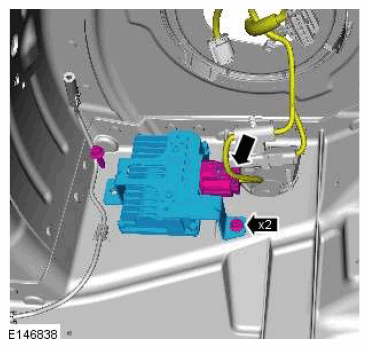

  2. G11607783

    Torque Specification: 10 Nm

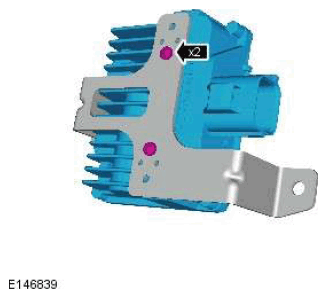

  3. G11607784

    Torque Specification: 3 Nm
