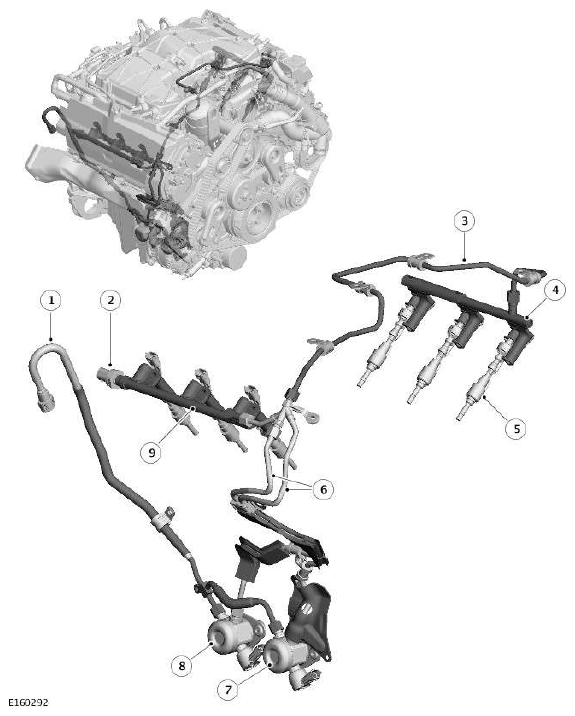

| 1 |
Low Pressure (LP) fuel line |
| 2 |
Fuel Rail Pressure and Temperature (FRPT) sensor |
| 3 |
Crossover tube |
| 4 |
Fuel rail - Bank 2 |
| 5 |
Fuel injector (6 off) |
| 6 |
High Pressure (HP) fuel lines |
| 7 |
HP fuel pump - No. 1 (Front) |
| 8 |
HP fuel pump - No. 2 (Rear) |
| 9 |
Fuel rail - Bank 1 |
