Component Locations: Notes

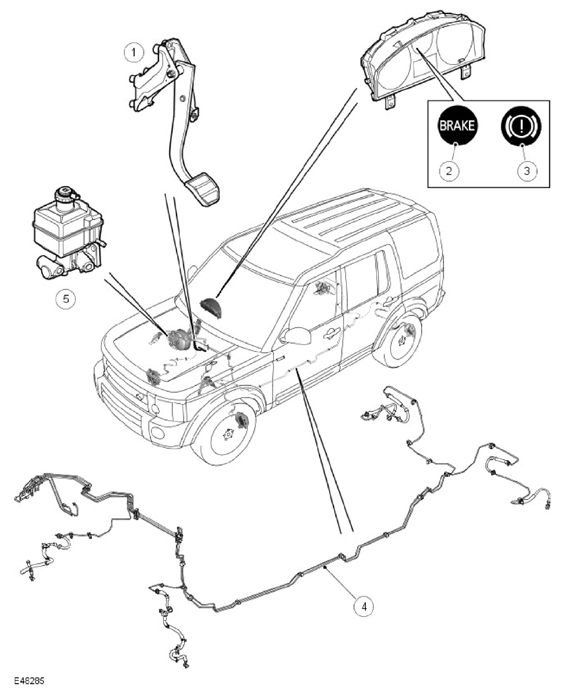

NOTE: RHD shown, LHD similar
G11597298
ITEM DESCRIPTION
1 Brake pedal (automatic shown)
2 Brake warning indicator (NAS)
3 Brake warning indicator (all except NAS)
4 Brake pipes and hoses
5 Brake master cylinder and reservoir
