Removal And Installation: Removal

  1. Remove the headlamp switch.

    For additional information, refer to: Headlamp Switch

  2. Remove the stoplamp switch.

    For additional information, refer to: Stoplamp Switch

  3. G11597308

    Remove the instrument panel access panel.

    • Release the 2 clips.

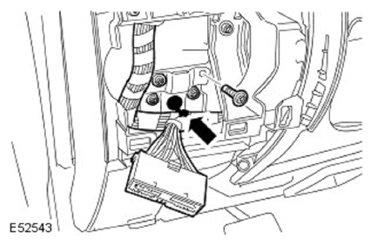

  4. G11597309

    Remove the brake pedal bracket.

    • Release the wiring harness clip.
    • Remove the 4 Torx bolts.

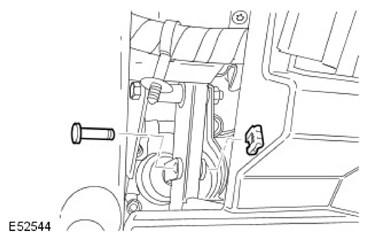

  5. G11597310

    Remove the brake pedal clevis pin.

    • Remove the clip.

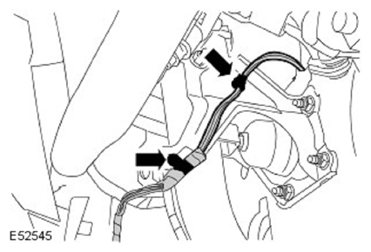

  6. G11597318

    Release the stoplamp wiring harness.

    • Release the 2 clips.

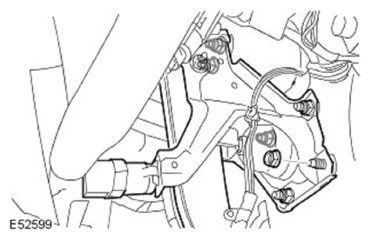

  7. G11597319

    Remove the brake pedal assembly.

    • Remove the 6 nuts.
    • Position the brake booster forward to aid the removal of the brake pedal assembly.
