Removal And Installation: Removal

  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Remove the brake fluid reservoir.

    For additional information, refer to: Brake Fluid Reservoir

  3. CAUTION: Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

    Disconnect the brake master cylinder brake tubes.

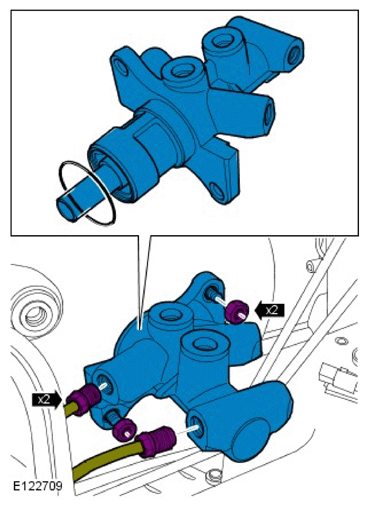

  4. G11597306

    Remove the brake master cylinder.

    • Remove the 2 nuts.
    • Remove and discard the O-ring seal.
