Removal And Installation: Removal

  1. G11600612

    Remove the closing trim panel.

    • Release the clip.
    • Remove the 2 screws.
    • Disconnect the electrical connector.

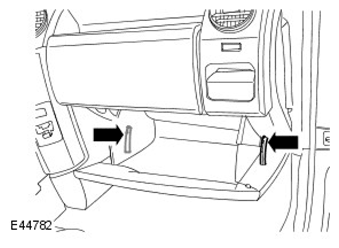

  2. G11600601

    Open the glove compartment to the service condition.

    • Release the glove compartment latch stops.
  3. CAUTION: If the hinge pin will not release, rotate the pin through 90 degrees to aid removal.

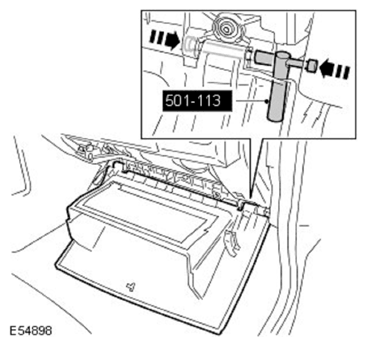

    G11597819

    Using the special tool, remove the glove compartment.

    • Apply pressure to the head of the hinge pin and install the special tool. Remove the hinge pin.
    • Repeat the above procedure for the remaining hinge pin.
