Removal And Installation: Installation

  1. CAUTION: Take care not to damage the circuit board.

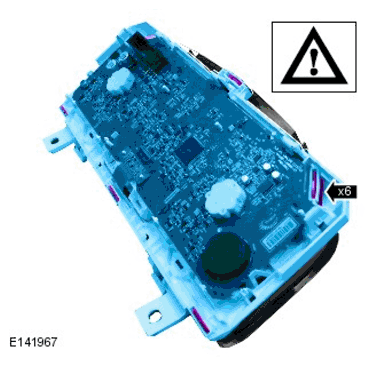

    G11600889

    Gently install the clips.

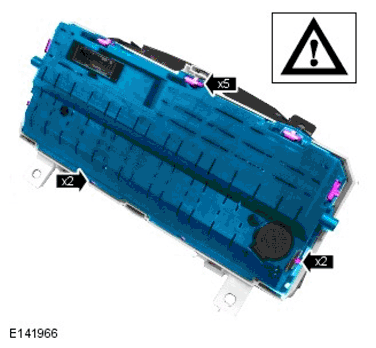

  2. G11600888

    Gently install the clips and remove the instrument cluster from the electro discharge bag.

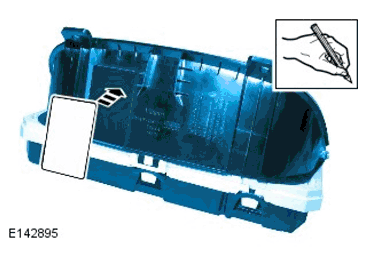

  3. G11600893

    Copy the serial number, build date and assembly number from the old label onto the new label.

  4. Refer to: Instrument Cluster .
