Removal And Installation: Removal

NOTE: Only carry out this step if a new instrument cluster is being fitted.

Using the diagnostic tool, start the instrument cluster replacement routine.
Fully extend the steering column for access.
Disconnect the battery ground cable.
For additional information, refer to: BATTERY DISCONNECT / CONNECT .
Remove the steering wheel.
Remove the headlamp switch trim panel.
For additional information, refer to: Driver Side Register Trim Panel .

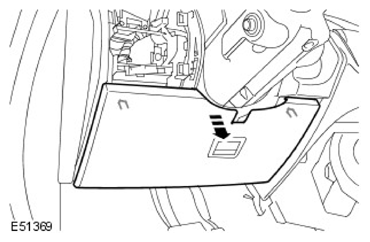

Remove the instrument panel access panel.
- Release the 2 clips.

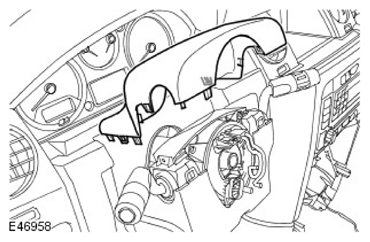

Remove the steering column upper shroud.
- Release the 6 clips.

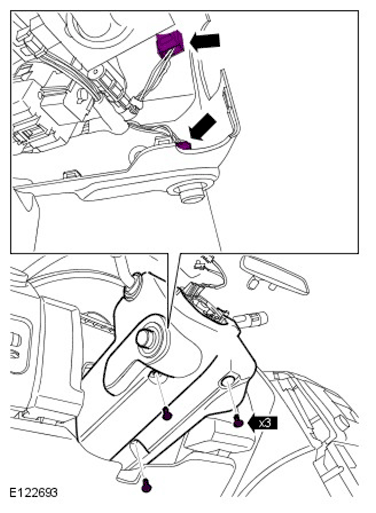

Remove the steering column lower shroud.
- Remove the 3 Torx screws.
- Disconnect the electrical connectors.

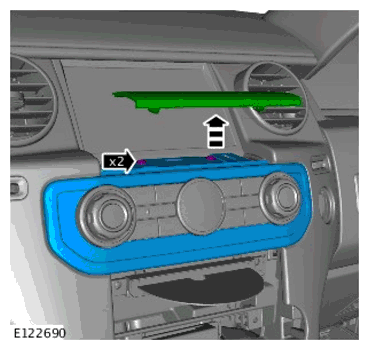

Remove the audio unit control trim panel.
- Remove the 2 retaining screws.
Remove the steering column side trim panel.
- Release the clips.
- Disconnect the electrical connector.

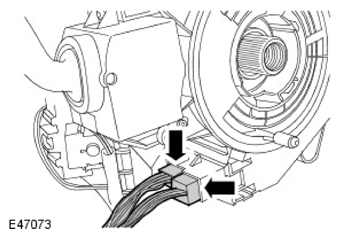

Disconnect the 2 electrical connectors from the steering column multifunction switches.

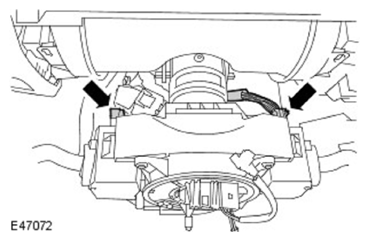

Disconnect the 2 electrical connectors from the clockspring.

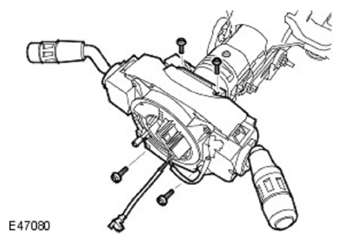

Remove the steering column switch assembly.
- Remove the 4 Torx bolts.

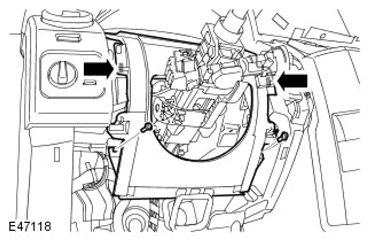

Remove the steering column gaiter panel.
- Remove the 2 Torx screws.
- Release the 2 clips.

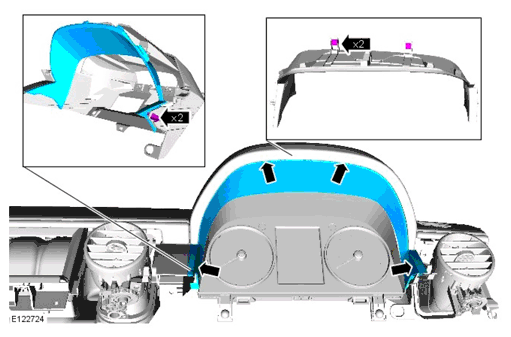

Remove the instrument cluster trim panel.
- Release the 2 clips.
- Release the 2 retaining tangs.

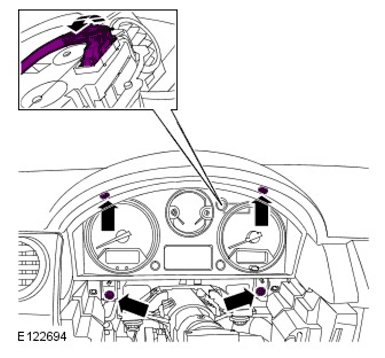

Remove the instrument cluster.
- Remove the 2 Torx screws.
- Remove the 2 retaining screws.
- Disconnect the electrical connector.
