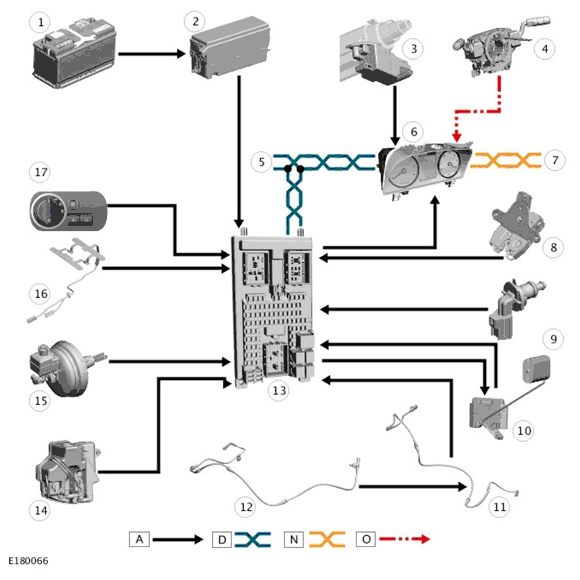

Control Diagram
NOTE:
A
= Hardwired; D
= High Speed (HS) Controller Area Network (CAN) bus; N
= Medium Speed (MS) CAN bus; O
= Local Interconnect Network (LIN) bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Engine Junction Box (EJB) |
| 3 | Electric Steering Column Lock (ESCL) |
| 4 | Clockspring (CLKSPG) |
| 5 | Medium Speed (MS) Controller Area Network (CAN) bus connection to other vehicle systems |
| 6 | Instrument cluster (IC) |
| 7 | High Speed (HS) Controller Area Network (CAN) bus connection to other vehicle systems |
| 8 | Tailgate ajar switch |
| 9 | Engine coolant level sensor |
| 10 | Fuel level sensor |
| 11 | Front brake pad wear sensor |
| 12 | Rear brake pad wear sensor |
| 13 | Central Junction Box (CJB) |
| 14 | Washer fluid level sensor |
| 15 | Brake fluid level sensor |
| 16 | Seatbelt - occupant detection pressure sensor |
| 17 | Lighting control switch |
