Instrument cluster (IC)

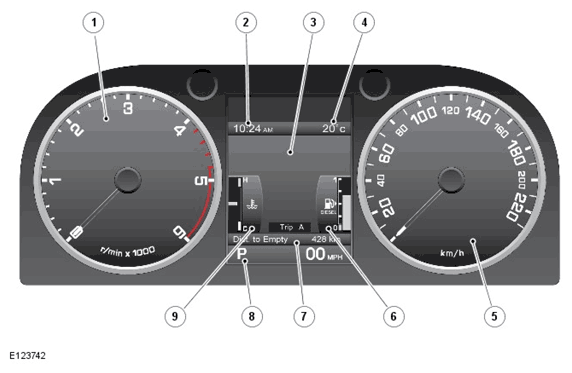

| ITEM | DESCRIPTION |
|---|---|
| 1 | Tachometer |
| 2 | Clock |
| 3 | Message center |
| 4 | External temperature |
| 5 | Speedometer |
| 6 | Fuel gauge |
| 7 | Total distance odometer and trip recorder |
| 8 | Gear selector position display |
| 9 | Temperature gauge |
The TFT display incorporates a 'Message Center' that communicates vehicle information and status data to the driver. Menus displayed in the message center allow access to a number of vehicle functions through the guidance of the message center menus. The driver operates the message center using the 'menu control' located on the right-hand-side of the steering wheel.
The IC features a number of warning indicators, where in addition to those located within the speedometer and tachometer gauges, another six indicators are positioned within the TFT unit above the message center.
