Removal And Installation: Installation

  1. Install the LH parking brake cable.
    • LH cable: Screw the cable in 5 complete turns.
    • Tighten the retaining nut.
  2. Locate and secure the LH parking brake cable.
    • Tighten the bolts to 22 Nm (16 lb.ft).
    • Secure the wiring harness.
    • Secure the cable grommet to the integrated body frame bracket.

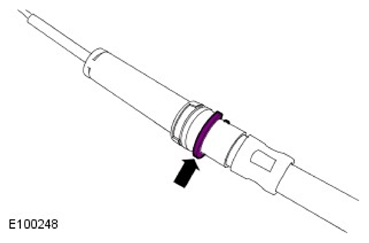

  3. NOTE: Make sure that the brake cable circlip is positioned as shown.
    G11597257

    Connect the parking brake cable to the wheel hub.

    • Connect the cable to the brake shoe lever.
    • Locate the cable to the backplate.
    • Tighten the nut to 8 Nm (6 lb.ft).
  4. CAUTION: Make sure that the component is clean, free of foreign material and lubricant.

    Install the LH rear brake disc.

    • Tighten the Torx screw to 35 Nm (26 lb.ft).
  5. Secure the LH rear brake caliper.
    • Remove and discard the tie strap.
    • Tighten the bolts to 115 Nm (85 lb.ft).
  6. NOTE: The adjustment procedure must be carried out in full.

    Adjust the parking brake shoes.

    For additional information, refer to: Parking Brake Shoe and Lining Adjustment .

  7. Install the rear wheels and tires.
    • Tighten the wheel nuts to 140 Nm (103 lb.ft).
  8. Install fuse number 8 into the BJB.
