Removal And Installation: Removal

  1. Using the Land Rover approved diagnostic system, drive the park brake to the mounting position.
  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. NOTE: The step must be carried out on both sides.

    Refer to: Brake Disc .

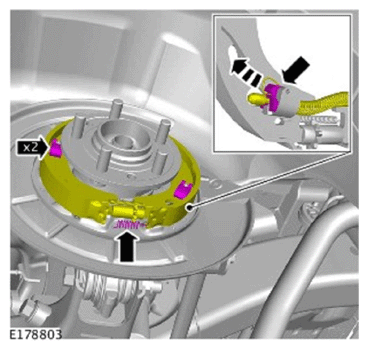

  4. NOTE: Repeat the step for the other side.
    G11597272

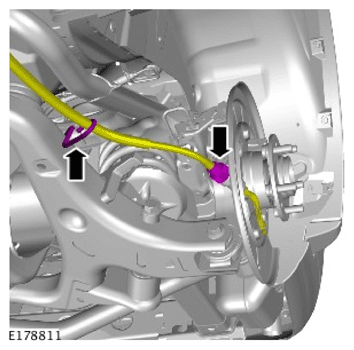

  5. NOTE: Repeat the step for the other side.
    G11597273

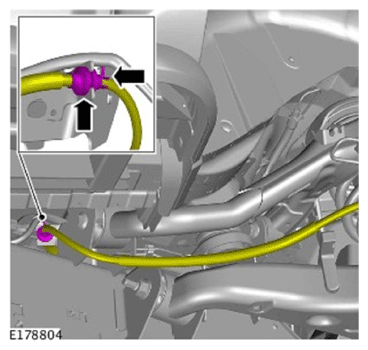

  6. NOTE: Repeat the step for the other side.
    G11597274

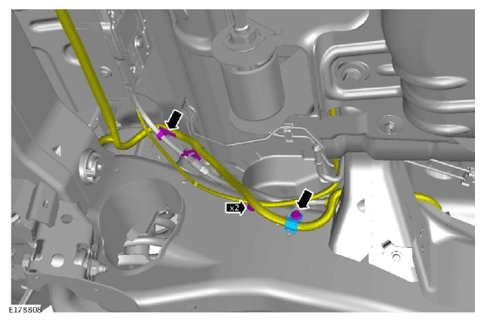

  7. G11597275

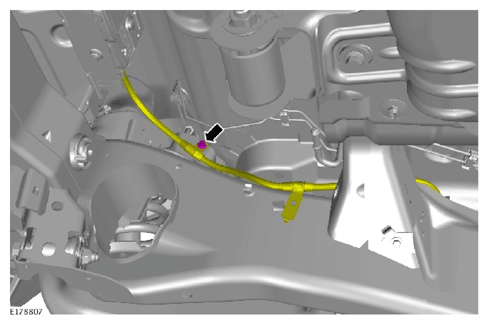

  8. G11597276

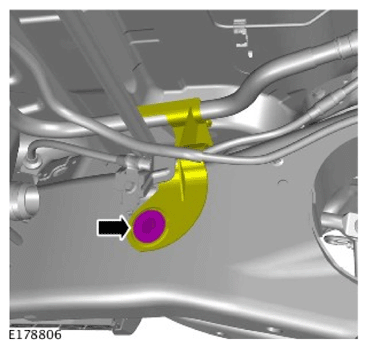

  9. G11597277

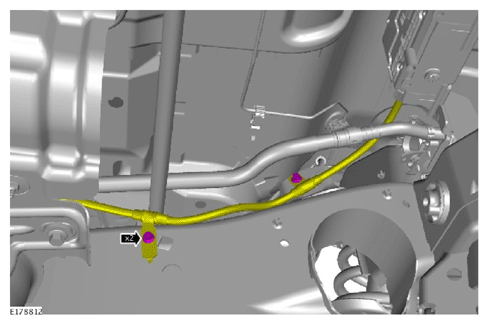

  10. G11597278

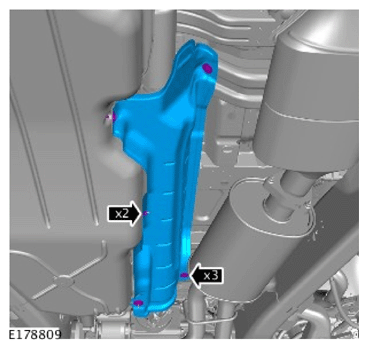

  11. G11597279

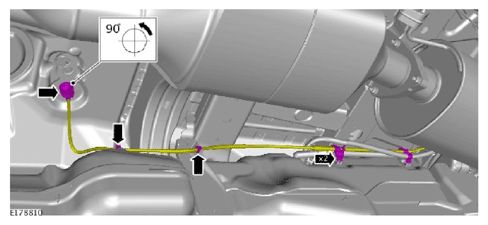

  12. NOTE: Note the installed position of the park brake emergency release cable to body seal.
    G11597280

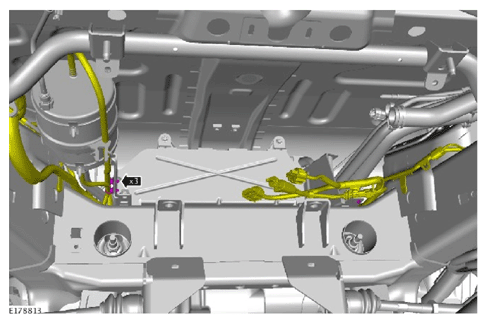

  13. G11597281

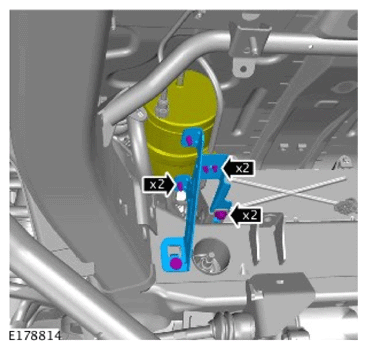

  14. G11597282

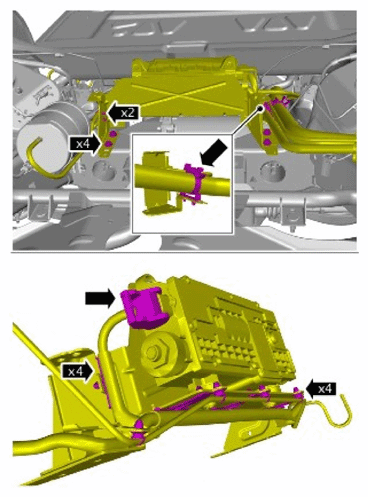

  15. NOTE:
    • Note the routing of the park brake emergency release cable.
    • Note the routing of the park brake cables.
    G11597283

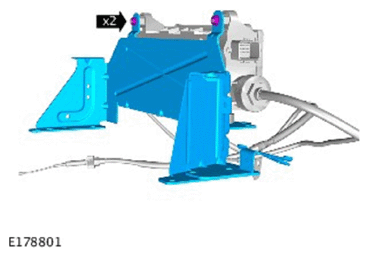

  16. G11597284

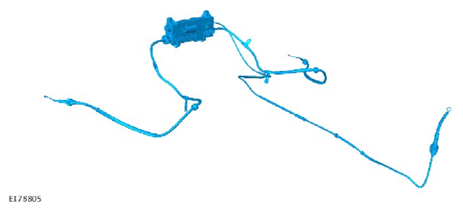

  17. G11597285
