Component Location

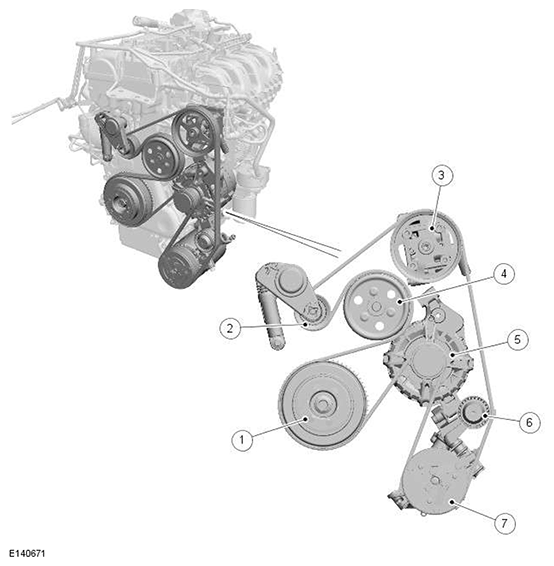

G11588463
ITEM DESCRIPTION
1 Crankshaft pulley
2 Tensioner and idler pulley assembly
3 Power steering pump pulley
4 Engine coolant pump pulley
5 Generator pulley
6 Idler pulley
7 A/C (air conditioning) compressor pulley
