Removal And Installation: Installation

  1. CAUTION:

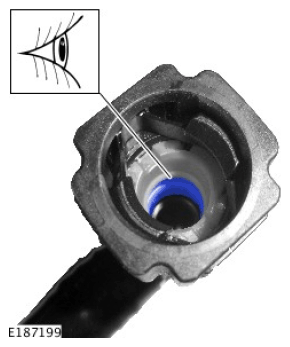

    • Make sure the seal is installed correctly.
    G11589539

    To install, reverse the removal procedure.
