Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the cover and disconnect the battery ground cable.

    Refer to: Specifications

  2. Remove the engine cover.

    Refer to: Engine Cover

  3. Remove the battery tray.

    Refer to: Battery Tray

  4. Remove the air cleaner assembly.

    Refer to: Air Cleaner

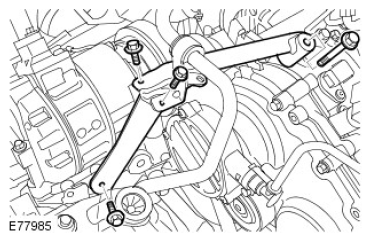

  5. G11589531

    Remove the A/C compressor, upper support bracket.

    Torque Specifications:

    M10 45 Nm

    M8 25 Nm

    M6 10 Nm

  6. Disconnect the brake booster vacuum line from the brake vacuum pump.
  7. NOTE: Make sure that this component is installed to the noted removal position.

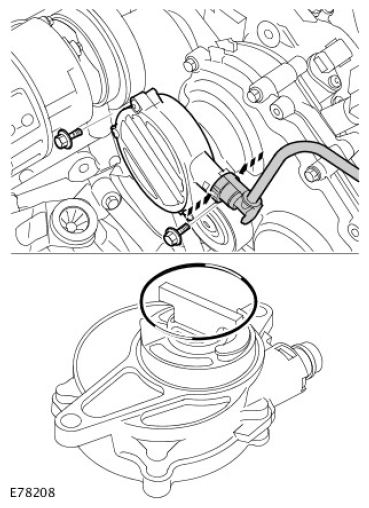

    G11589532

    Remove the brake vacuum pump.

    Torque Specification: 17 Nm
