Removal And Installation: Removal
CAUTION:
Make sure that all openings are sealed. Use new blanking caps.
NOTE:
Removal steps in this procedure may contain installation details.
- Refer to: Air Cleaner
- Refer to: Air Cleaner Intake Pipe
-

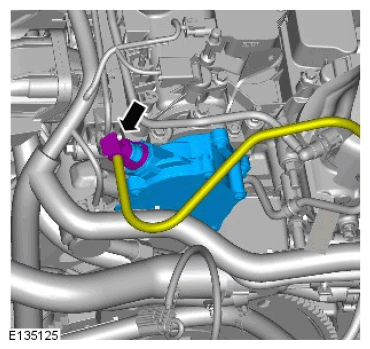

CAUTION: Be prepared to collect escaping oil.

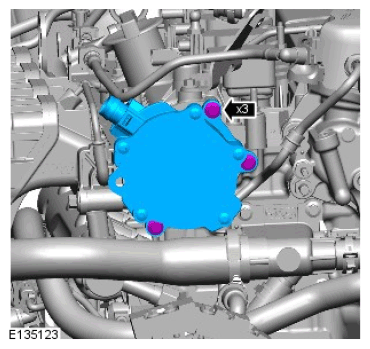

Torque Specification: 10 Nm
-

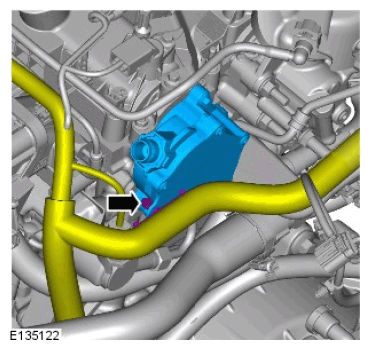

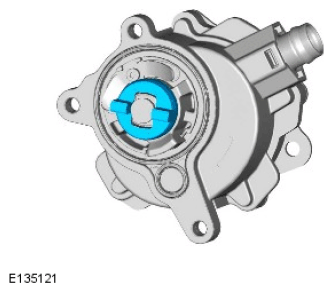

CAUTION: Note the fitted position of the component prior to removal.
-

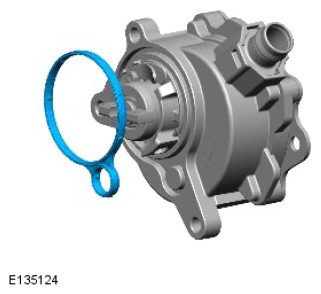

CAUTION: Discard the seal.
