Removal And Installation: Removal
CAUTION:
If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
- Make the SRS system safe.
Refer to: Standard Workshop Practices
- Refer to: Driver Lower Airbag Module
- Refer to: Windshield Wiper Motor
- Refer to: Brake Master Cylinder - GTDi 2.0L Petrol

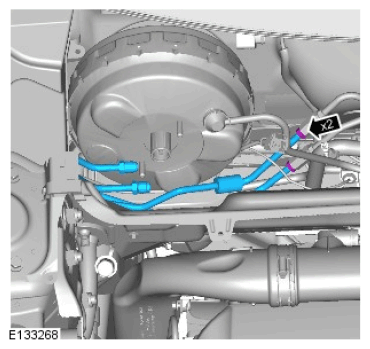

Left-hand drive vehicles
- Refer to: Battery Tray
Torque Specification: 9 Nm
-
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.
Torque Specification: 17 Nm

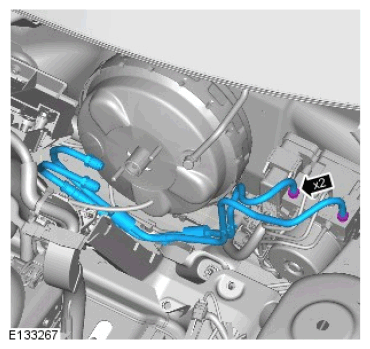

Right-hand drive vehicles
-
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.
Torque Specification: 17 Nm

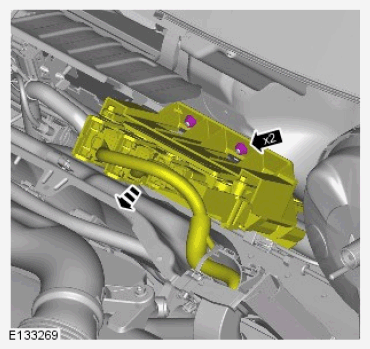

All vehicles
Torque Specification: 25 Nm
