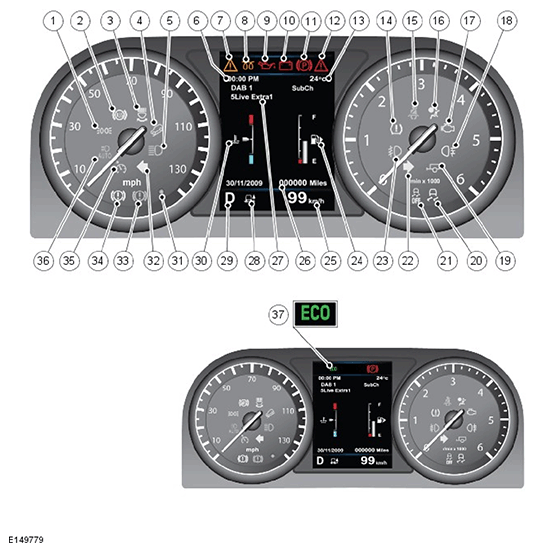

| 1 |
Side lamps on warning indicator |
| 2 |
Anti-lock Brake System (ABS) warning indicator |
| 3 |
Adaptive front lighting system warning indicator |
| 4 |
Hill Descent Control (HDC) warning indicator (not applicable to front wheel drive vehicles) |
| 5 |
High beam warning indicator |
| 6 |
Time display |
| 7 |
General warning/information message indicator (amber) |
| 8 |
Glow plug warning indicator (TD4 2.2L DIESEL only) |
| 9 |
Low oil pressure warning indicator |
| 10 |
Battery charge warning indicator |
| 11 |
Parking brake applied warning indicator (Symbol shown as 'PARK' in NAS markets) |
| 12 |
Critical warning indicator (red) |
| 13 |
Ambient temperature display |
| 14 |
Tire Pressure Monitoring System (TPMS) warning indicator |
| 15 |
Seat belt warning indicator |
| 16 |
Airbag/SRS warning indicator |
| 17 |
Engine Malfunction Indicator Lamp (MIL) |
| 18 |
Rear fog lamps active warning indicator |
| 19 |
Trailer turn signal indicators warning indicator |
| 20 |
Dynamic Stability Control (DSC) warning indicator |
| 21 |
DSC off warning indicator |
| 22 |
Right turn signal indicator |
| 23 |
Front fog lamps active warning indicator |
| 24 |
Fuel level gauge |
| 25 |
Secondary speedometer |
| 26 |
Odometer/Trip computer information display |
| 27 |
Message center |
| 28 |
Terrain Response (TR) mode indicator (not applicable to front wheel drive vehicles) |
| 29 |
Selected gear display (Automatic transmission only) |
| 30 |
Engine coolant temperature gauge |
| 31 |
Alarm system Light Emitting Diode (LED) |
| 32 |
Left turn signal indicator |
| 33 |
Low brake fluid or Electronic Brake Distribution fault warning indicator (red) (Symbol shown as 'BRAKE' in NAS markets) |
| 34 |
Low brake pads or Emergency Brake Assist (EBA) fault warning indicator (amber) (Symbol shown as 'BRAKE' in NAS markets) |
| 35 |
Cruise control active warning indicator |
| 36 |
Auto high beam enabled warning indicator |
| 37 |
Stop/Start (ECO) active warning indicator |
