Component Location
WARNING: This page is about a different car, the 2018 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

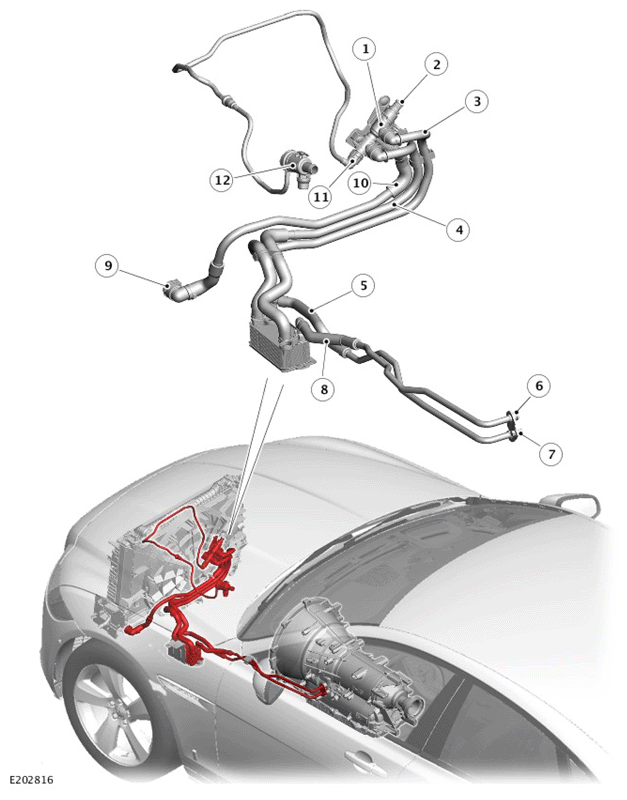

| ITEM | DESCRIPTION |
|---|---|
| 1 | Automatic Transmission Fluid (ATF) warming valve |
| 2 | Hose connection - engine coolant return to variable coolant pump inlet |
| 3 | Connection - ATF outlet |
| 4 | Engine coolant inlet to ATF cooler Connection - ATF outlet |
| 5 | ATF inlet |
| 6 | ATF return pipe connection |
| 7 | ATF supply pipe connection |
| 8 | ATF outlet |
| 9 | Radiator lower hose connection |
| 10 | Hose connection - Radiator low temperature zone - cold engine coolant inlet |
| 11 | Hose connection - Thermostatic valve - ATF cooler - Hot engine coolant inlet |
| 12 | Thermostatic Valve - ATF cooler |
