Removal And Installation: Installation

  1. G11587672

    Special Tool(s):  310-198

  2. G11587673

    Special Tool(s):  310-199

  3. CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must be installed with the fuel injector it was removed with.
    G11587674

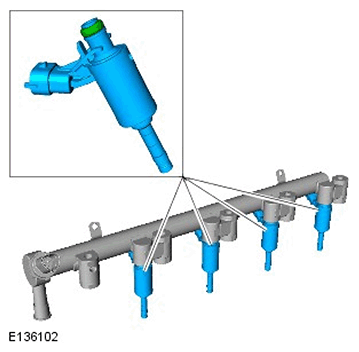

  4. G11587675

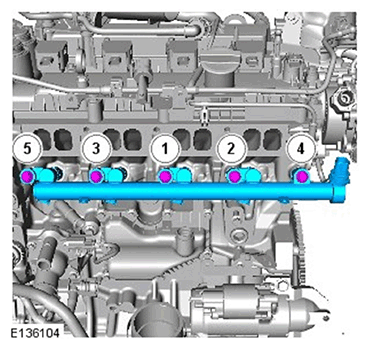

  5. Fig 1: Fuel Rail Tightening Sequence
    G11587676Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Tighten the bolt in the sequence shown.

      Torque Specification: 10 Nm

    2. Loosen, but do not remove the bolts.
    3. Tighten the bolt in the sequence shown.

    Torque Specification:

    Stage 1: 7 Nm

    Stage 2: 26°

  6. CAUTION: Install a new fuel pipe.
    G11587640
    • Union:

      Torque Specification: 30 Nm

    • Bolt:

      Torque Specification: 10 Nm

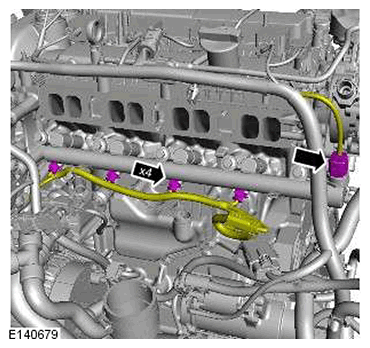

  7. CAUTION: Make sure that the components are installed to the noted position in the removal steps.
    G11588339

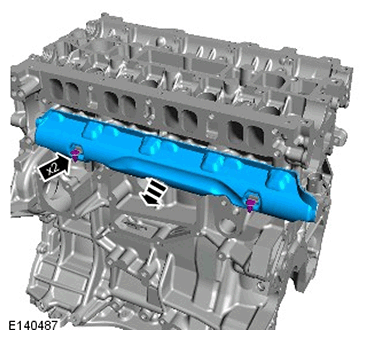

  8. G11587341
  9. G11588326
  10. Refer to: Intake Manifold
  11. Connect the battery ground cable.

    Refer to: Battery Disconnect/Connect
