Removal And Installation: Removal

CAUTION: If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: Brake Fluid Reservoir - GTDi 2.0L Petrol .
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

CAUTION: Make sure that all openings are sealed. Use new blanking caps.

Torque Specification: 17 Nm

Right-hand drive vehicles
Torque Specification: 10 Nm

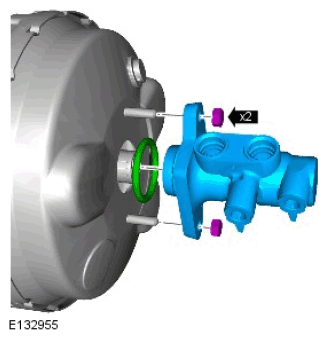

All vehicles
CAUTION: Discard the seal.

Torque Specification: 25 Nm
