Removal And Installation: Removal
CAUTION:
- Extreme cleanliness must be exercised when handling these components.
- If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE:
Removal steps in this procedure may contain installation details.
All vehicles
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
Left-hand drive vehicles
- Remove the battery.
Refer to: Battery .
Right-hand drive vehicles
- Remove the plenum chamber panel.
Refer to: Plenum Chamber .
All vehicles
-

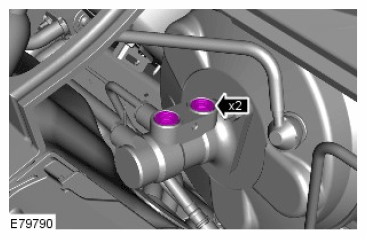

CAUTION: Be prepared to collect escaping fluids.
Torque Specification: 6 Nm

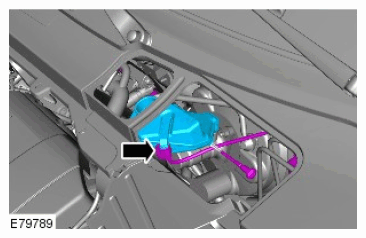

Vehicles with manual transmission
-
CAUTION:
- Be prepared to collect escaping fluids.
- Make sure that all openings are sealed.
All vehicles
-
CAUTION: Make sure that all openings are sealed.
