Removal And Installation: Removal

NOTE: Some variation in the illustration may occur, but the essential information is always correct.
  1. Fully extend the steering column for access
  2. Connect the battery ground cable

    Refer to: Specifications

  3. Refer to: Instrument Cluster

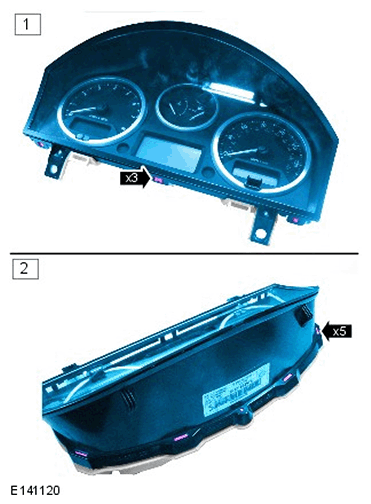

  4. G11589455

    Carefully release the 3 clips along the bottom edge and the 5 clips along the top edge.

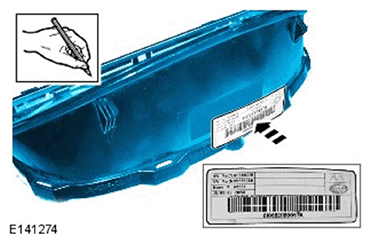

  5. G11589456

    Copy the serial number and build date information from the old label on to the new label.

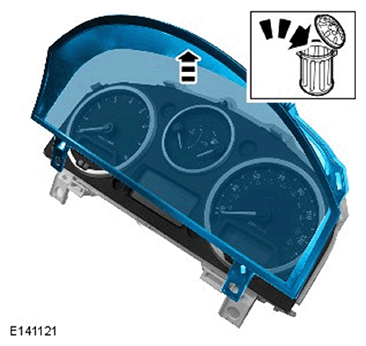

  6. CAUTION: Take care not to damage the dials or buttons when removing the lens.
    G11589457
