Home >> Land Rover >> 2013 >> Range Rover Base >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brake Actuation -- Range Rover/L405 >> Hydraulic Brake Actuation >> Brake Pedal And Bracket >> Removal And Installation >> Installation

Removal And Installation: Installation

CAUTION: Make sure that new nuts are installed.

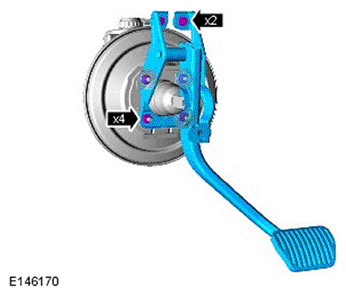

  1. G11693888

    Renew Part: Brake pedal mounting nuts Quantity: 4  .

    Torque Specification: 25 Nm

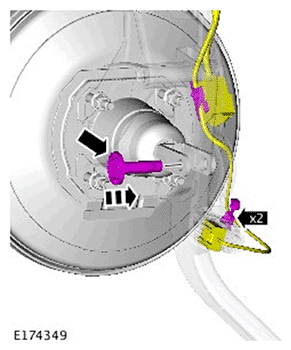

  2. G11693890
  3. CAUTION:
    • The brake pedal MUST NOT be depressed during this operation. Failure to follow this instruction will result in damage to the stoplamp switch.
    • Make sure that excessive force is not used when installing the stoplamp switch. Failure to follow this instruction may result in damage to the stoplamp switch.

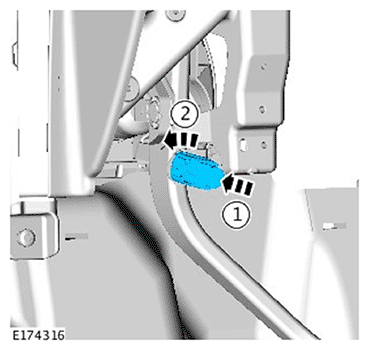

    G11693891

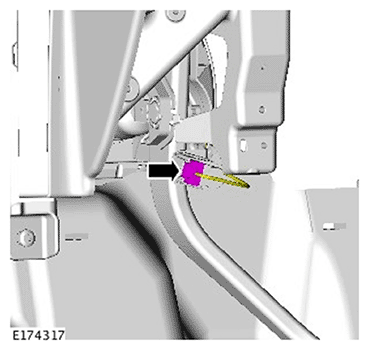

  4. G11693892
  5. CAUTION:
    • Make sure that the area around the component is clean and free of foreign material.
    • Install a new shim.

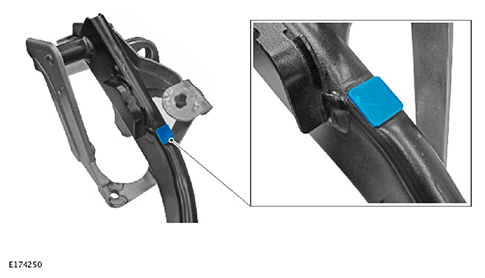

    G11598826

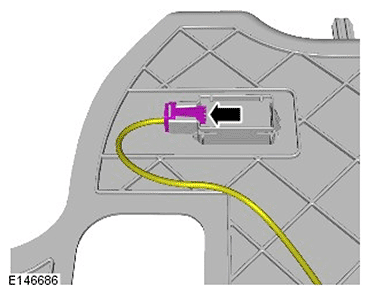

  6. G11693885

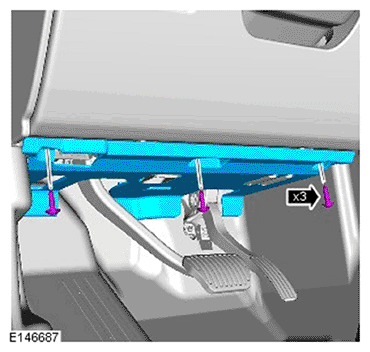

  7. G11693884
