Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: PASSENGER SIDE REGISTER .
  2. G11763321
  3. NOTE: Release the trim clips from the middle to the sides, failure to follow this instruction may result in damage to the retaining frame.
    G11754672

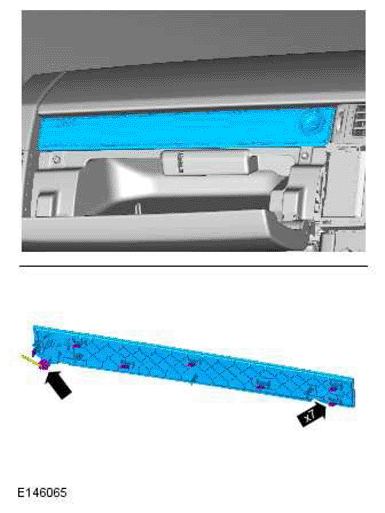

  4. G11763323

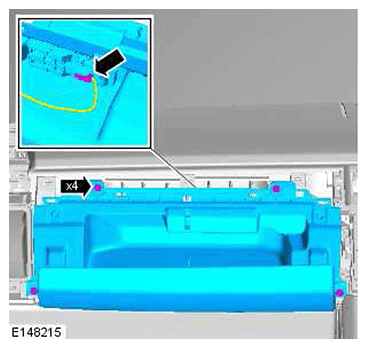

  5. G11754130
  6. NOTE: Do not disassemble further if the component is removed for access only.

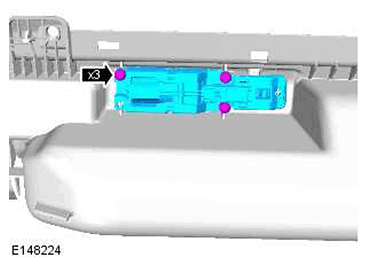

    G11754131
