Removal And Installation: Removal

All vehicles

1. CAUTION: Make sure that the protective tape does not leave adhesive marks on the headliner.
   multimedia:A supplement to the article is available.

   Apply protective tape to the headliner in the areas illustrated.

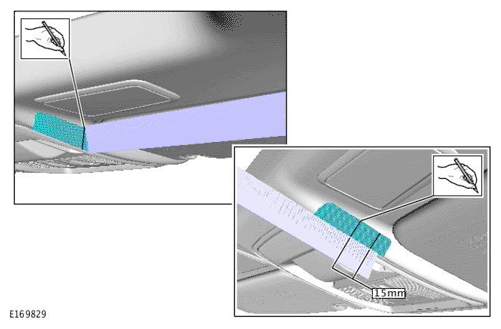

2. NOTE: Right illustration shown, Left is similar.

   Position a suitable ruler inline with the sun visor, mark the tape as illustrated. Make another mark on the tape 15mm away from the original mark.

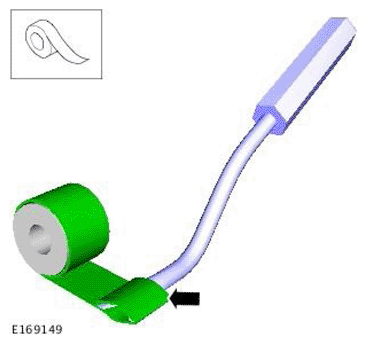

3. CAUTION: Apply heatshrink or protective tape to the end of a suitable tool to protect the interior components.

   Vehicles without telematics

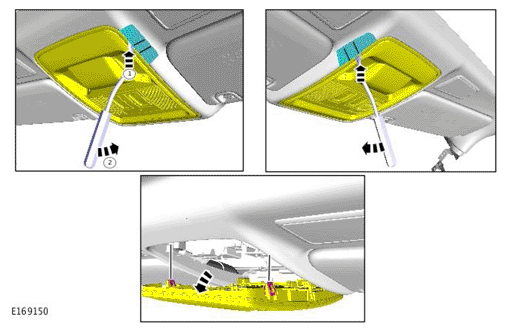

4. CAUTION: Care must be taken during this operation. Do not use excessive force or the headliner may distort and a new component will need to be installed.

   Using a suitable tool, release the overhead console in the locations previously marked as illustrated.

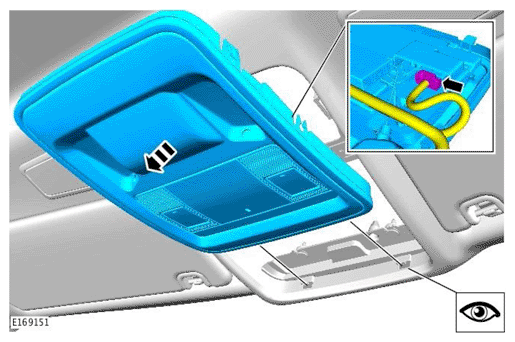

5. CAUTION: Take extra care not to damage the surrounding components.
6. NOTE: Do not disassemble further if the component is removed for access only.

   Vehicles with telematics

7. CAUTION: Care must be taken during this operation. Do not use excessive force or the headliner may distort and a new component will need to be installed.

   Using a suitable tool, release the overhead console in the locations previously marked as illustrated.

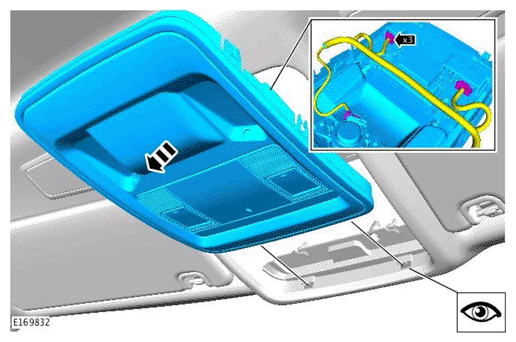

8. CAUTION: Take extra care not to damage the surrounding components.

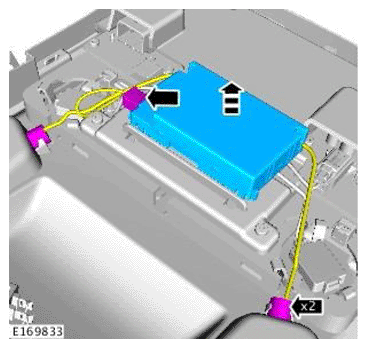

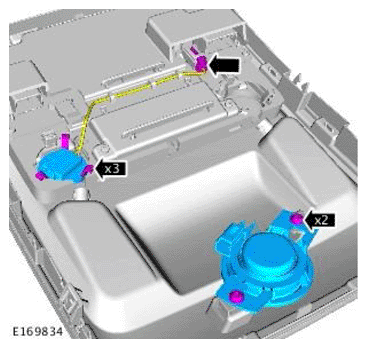

9. NOTE: Do not disassemble further if the component is removed for access only.
