Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Disconnect the battery ground cable.

    Refer to: SPECIFICATIONS .

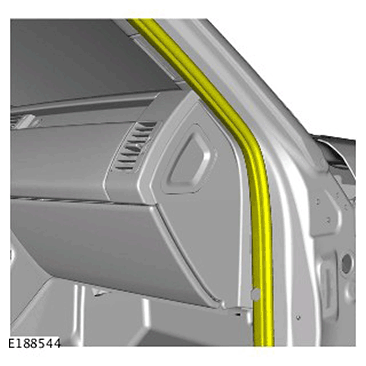

  2. G11754033

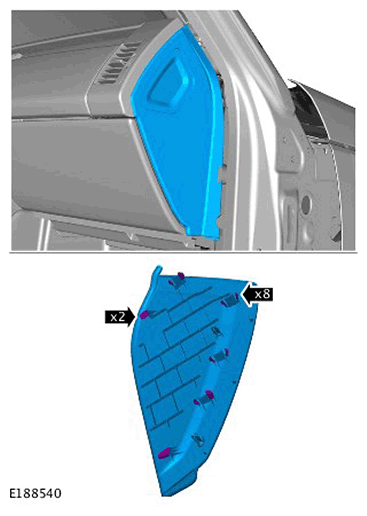

  3. G11754034

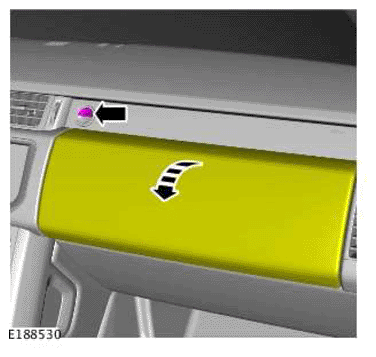

  4. G11763485

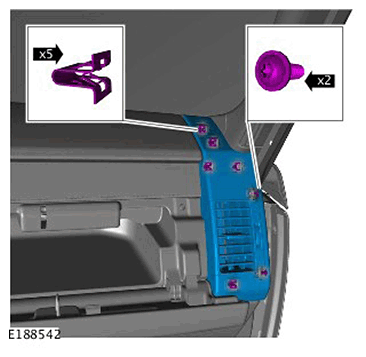

  5. G11754036

    Torque Specification: 2.5 Nm

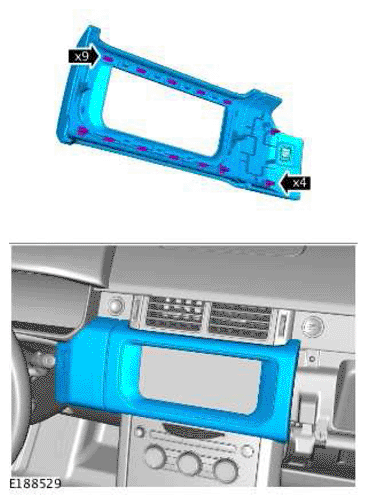

  6. G11763486

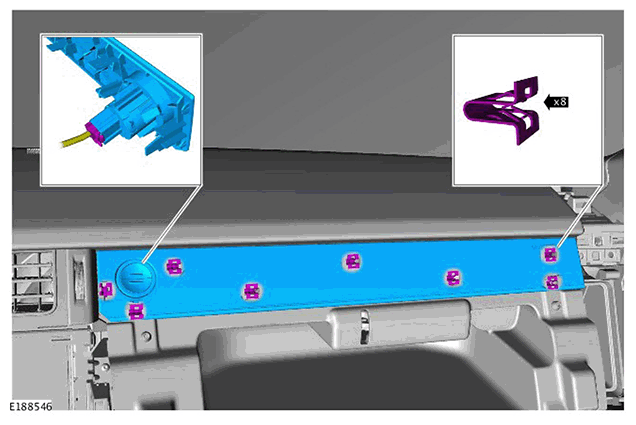

  7. G11754038

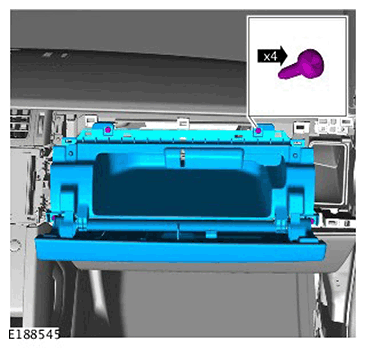

  8. G11754039

    Torque Specification: 2.5 Nm

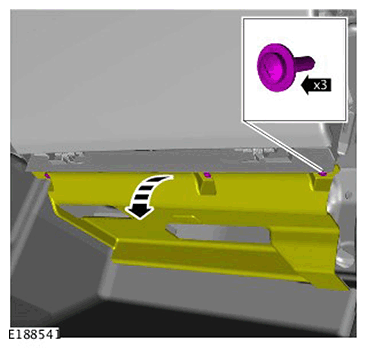

  9. G11754040
  10. G11704263
  11. G11704264
  12. G11704265

    Vehicles with business seats

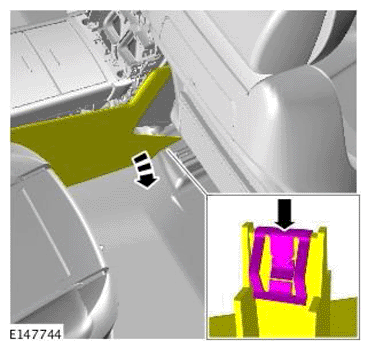

  1. NOTE: Repeat the procedure for the other side.
    G11704266

    All vehicles

  1. G11704267

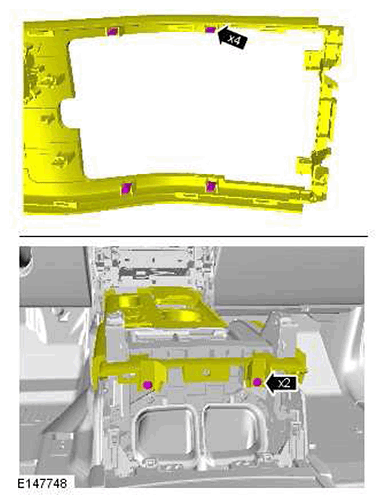

  2. G11753925

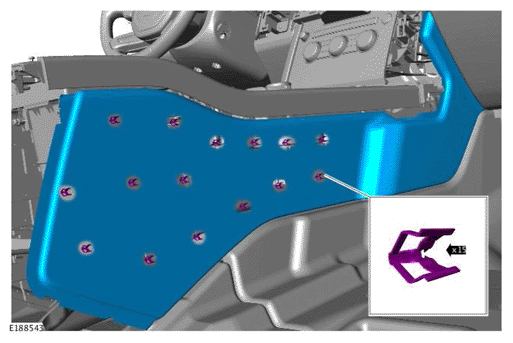

  3. G11704269

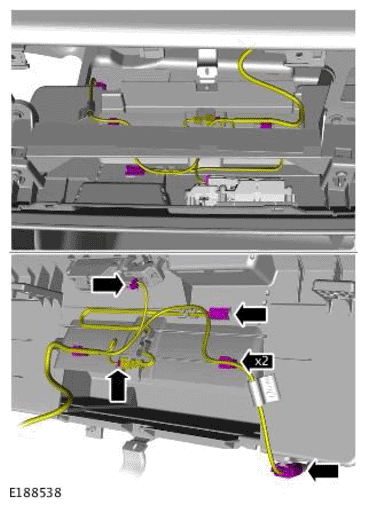

  4. G11704270

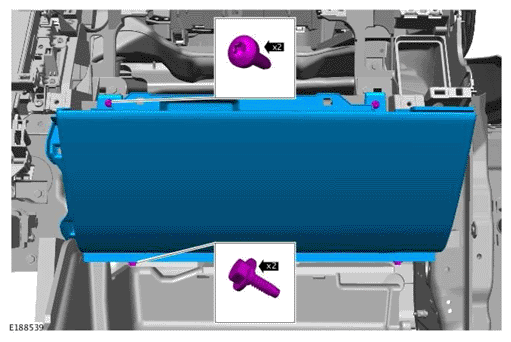

  5. CAUTION: Install all the bolts finger tight before final tightening.
    NOTE: Do not disassemble further if the component is removed for access only.
    G11704271

    Torque Specification: 9 Nm

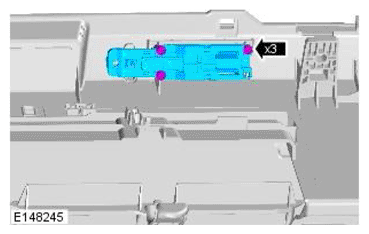

  6. G11704272
