Removal And Installation: Removal
WARNING:
Do not probe supplemental restraint system (SRS) electrical connectors.
NOTE:
Removal steps in this procedure may contain installation details.

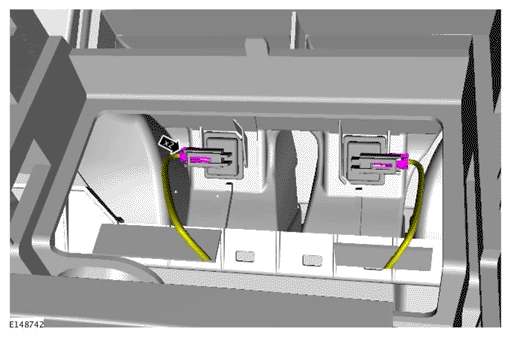

- Disconnect the battery ground cable.
Refer to: SPECIFICATIONS .
- Refer to: UPPER GLOVE COMPARTMENT .
- Refer to: LOWER GLOVE COMPARTMENT .
- Refer to the relevant Information and Entertainment Display (Removal and Installation) service information.
- Refer to: DIGITAL DISC PLAYER .
- Refer to: FLOOR CONSOLE .
-

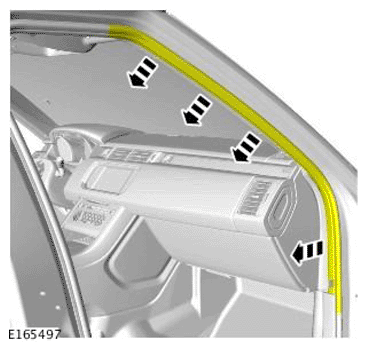

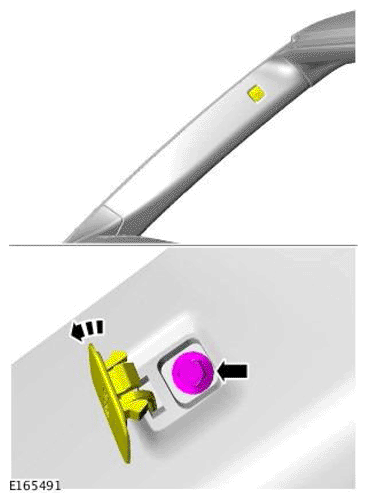

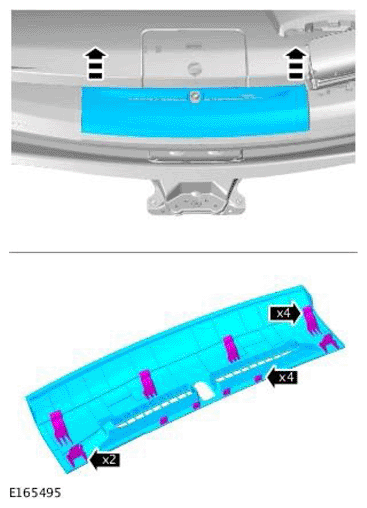

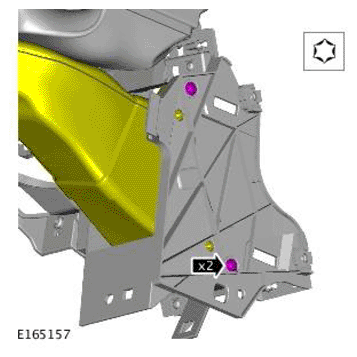

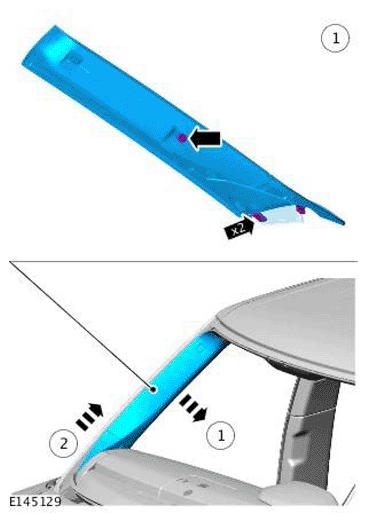

NOTE: Repeat the procedure for the other side.
-

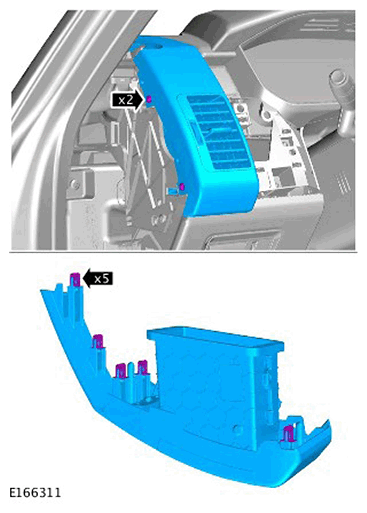

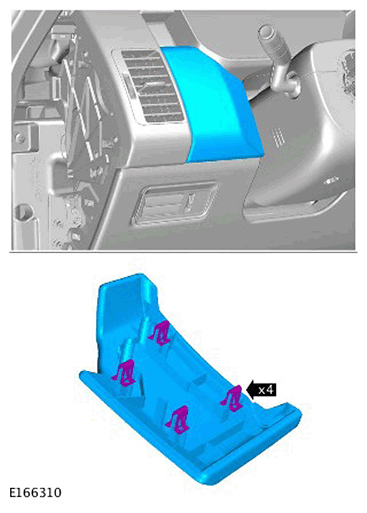

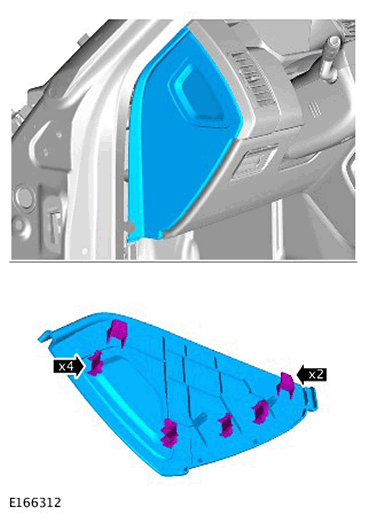

NOTE: Repeat the procedure for the other side.

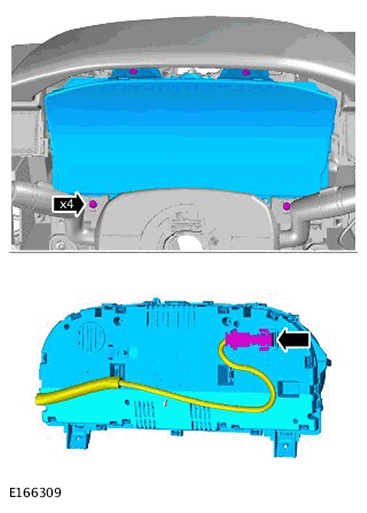

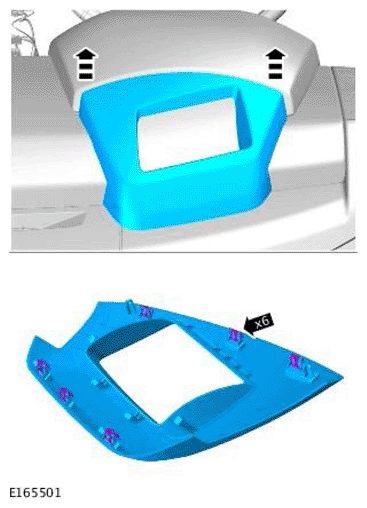

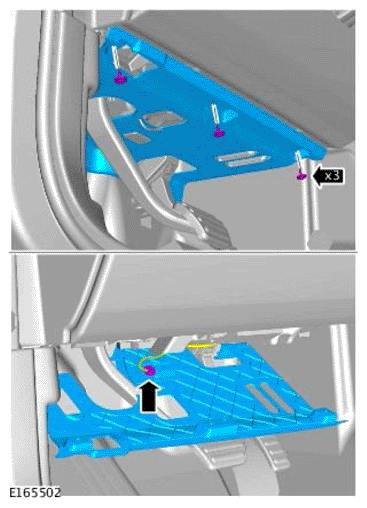

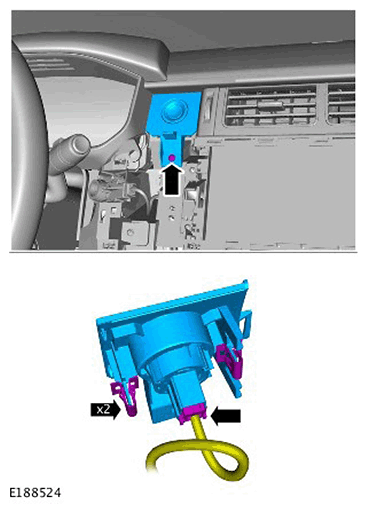

Torque Specification: 6 Nm

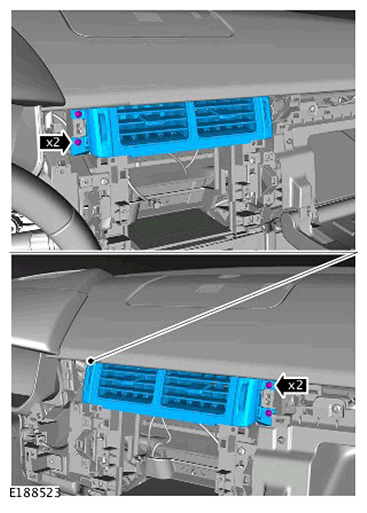

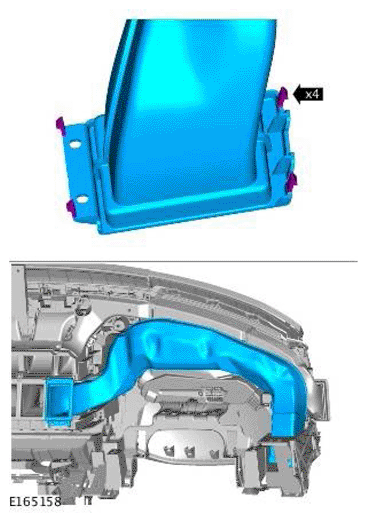

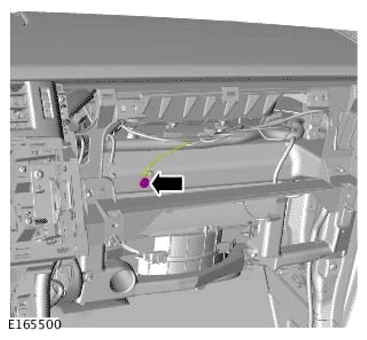

Torque Specification: 1.7 Nm

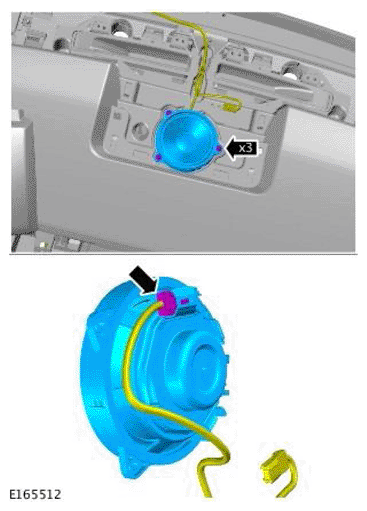

Torque Specification: 1.7 Nm

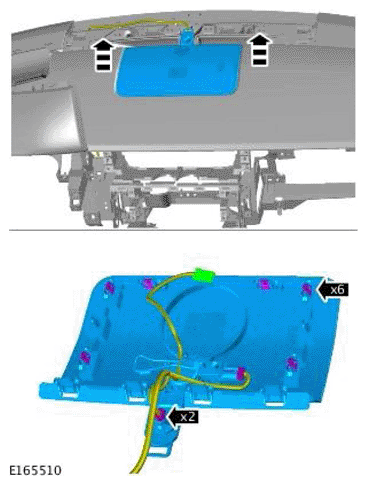

Torque Specification: 1.7 Nm
Torque Specification: 1.7 Nm
Torque Specification: 1.7 Nm

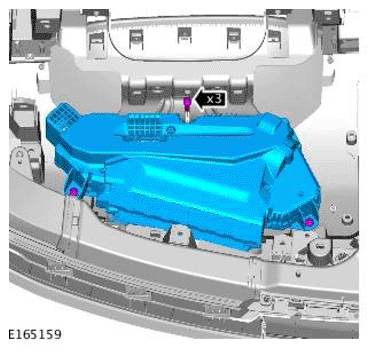

Torque Specifications :
M6 9 Nm
M6 2.5 Nm

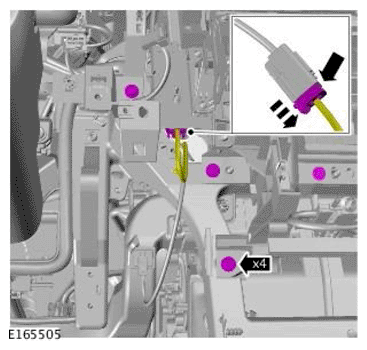

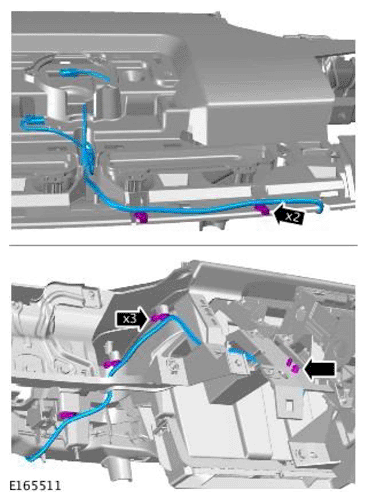

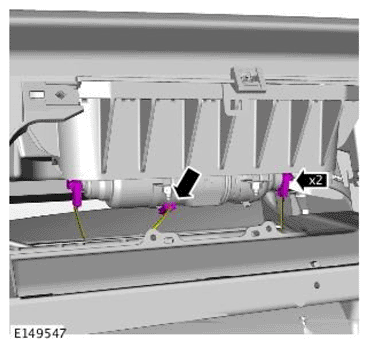

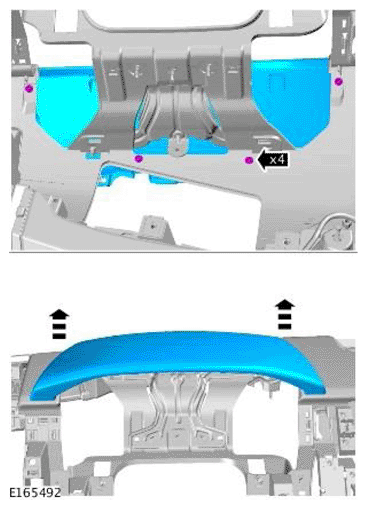

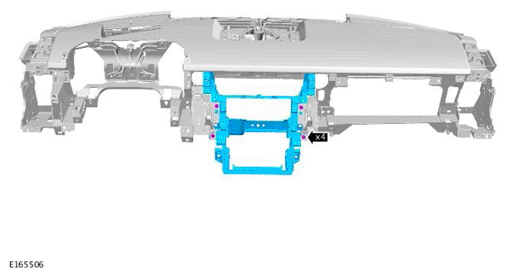

Torque Specification: 9 Nm

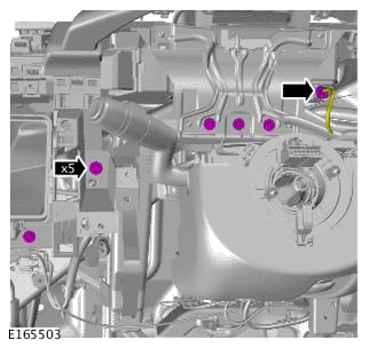

Torque Specification: 9 Nm

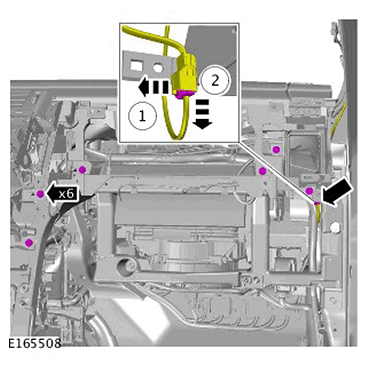

Torque Specification: 9 Nm
Torque Specification: 1.7 Nm

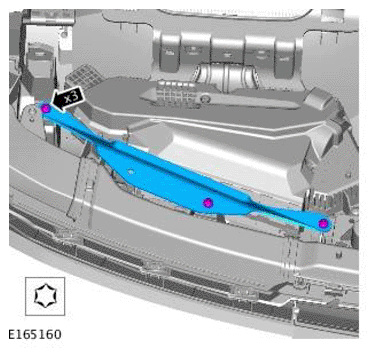

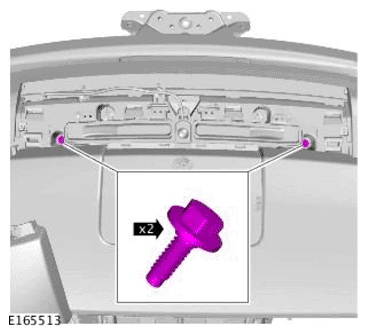

Torque Specification: 9 Nm
Torque Specification: 9 Nm
-

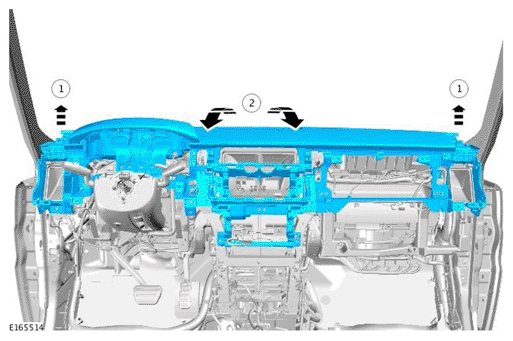

WARNING: This step requires the aid of another technician.NOTE: Do not disassemble further if the component is removed for access only.
-
NOTE: Do not disassemble further if the component is removed for access only.

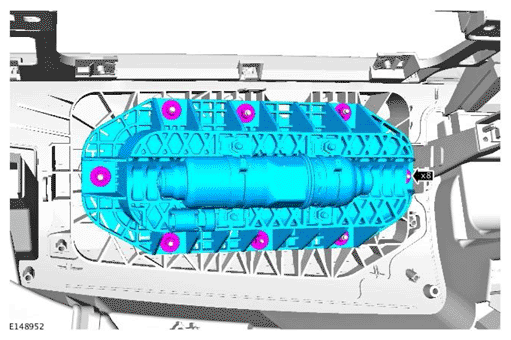

Torque Specification: 1.7 Nm
Torque Specification: 1.7 Nm
Torque Specification: 1.5 Nm
Torque Specification: 1.5 Nm
Torque Specification: 5 Nm
Torque Specification: 4.5 Nm
Torque Specification: 9 Nm
