Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Make the SRS system safe.

    Refer to: STANDARD WORKSHOP PRACTICES .

  3. Refer to: HEATER CORE AND EVAPORATOR HOUSING .

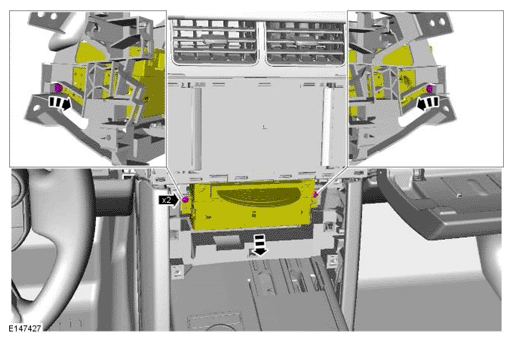

  4. G11704274

    Torque Specification: 2.2 Nm

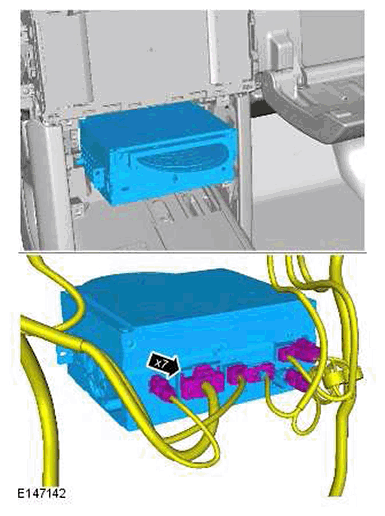

  5. G11753935

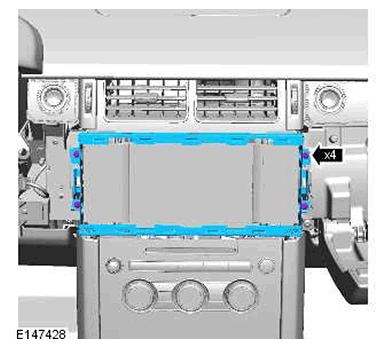

  6. G11753936

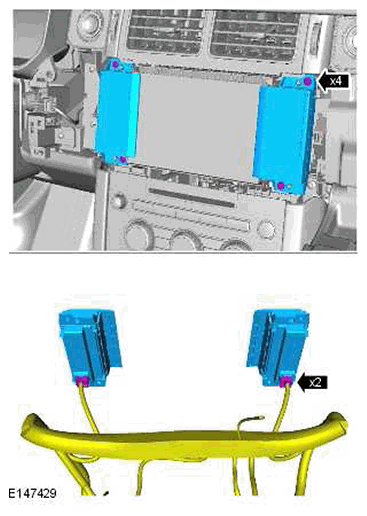

  7. G11753937

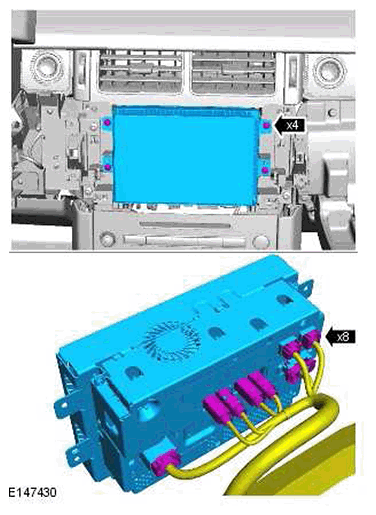

  8. G11753938

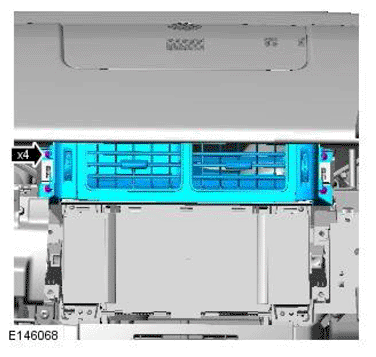

  9. G11701303
  10. G11704276

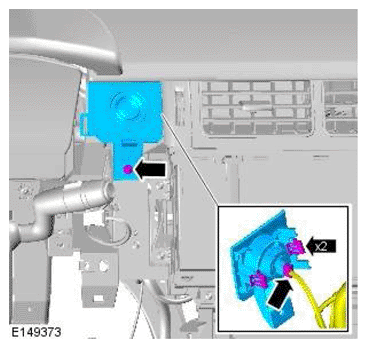

  11. G11701301

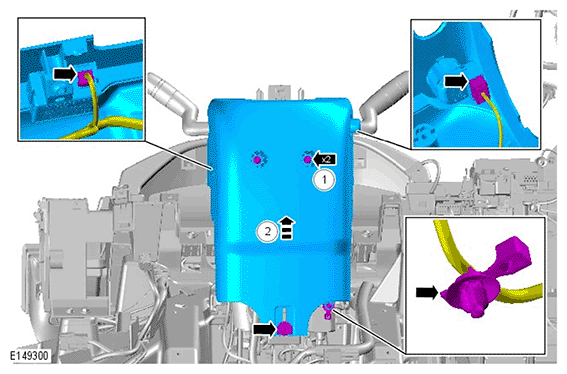

  12. G11694088

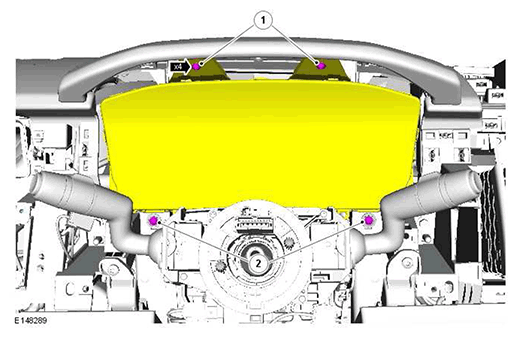

  13. G11753943

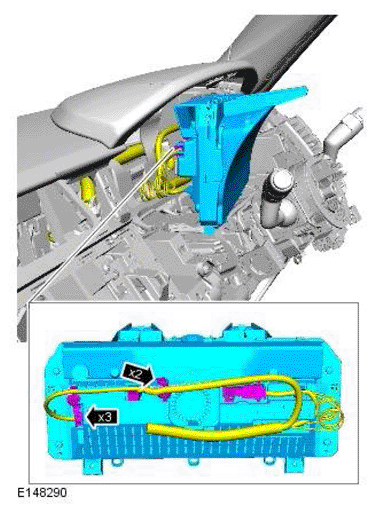

  14. G11701778

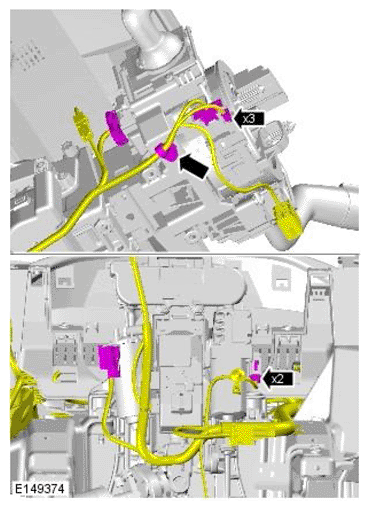

  15. G11704281

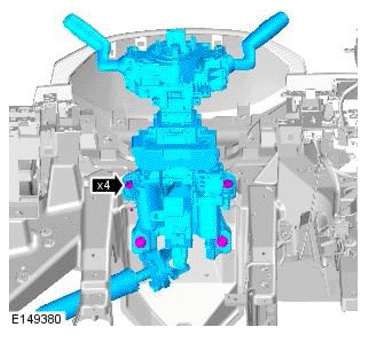

  16. G11704282

    Torque Specification: 25 Nm

  17. CAUTION: Install all the bolts finger tight before final tightening.

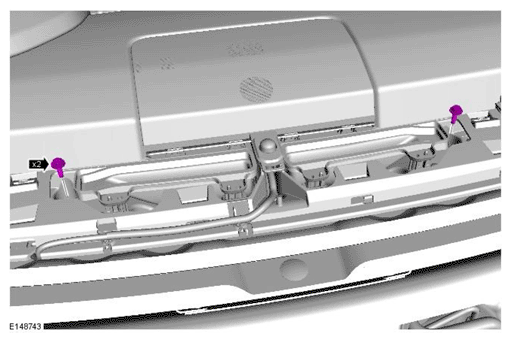

    G11704283

    Torque Specification: 9 Nm

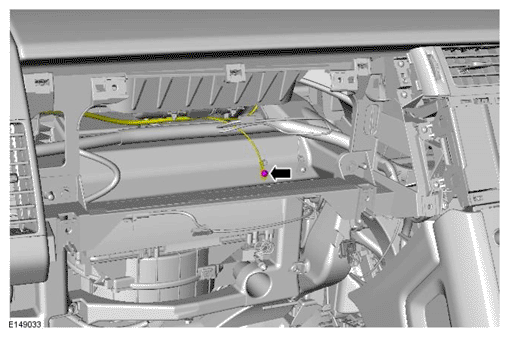

  18. NOTE: Install the bolt finger tight before final tightening.
    G11704284

    Torque Specification: 12 Nm

  19. CAUTION: Install all the bolts finger tight before final tightening.

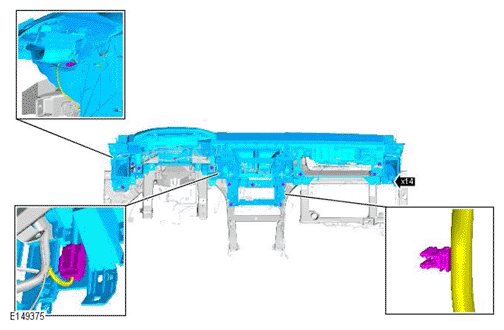

    G11704285

    Torque Specification: 9 Nm

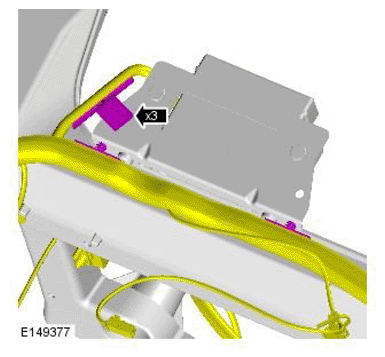

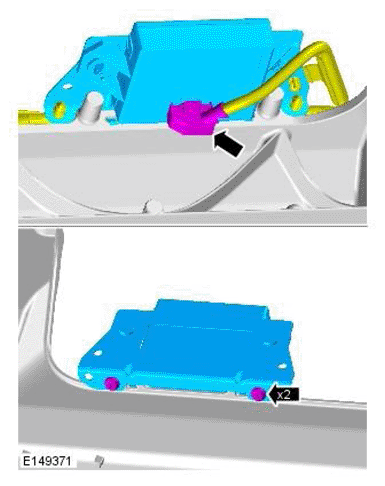

  20. G11702651
  21. CAUTION: Install all the bolts finger tight before final tightening.
    G11702652

    Torque Specification: 9 Nm

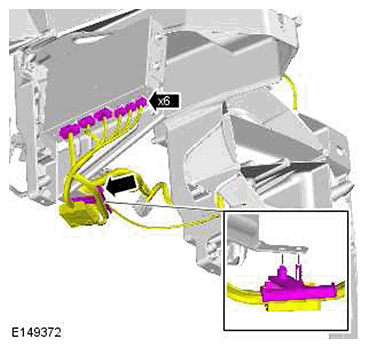

  22. G11753952
  23. CAUTION: Install all the bolts finger tight before final tightening.

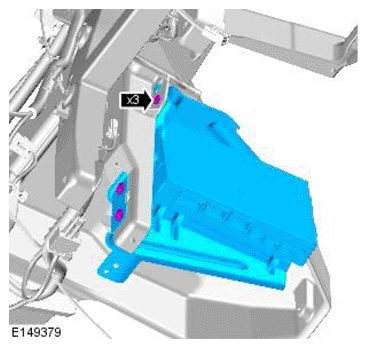

    G11704289

    Torque Specification: 9 Nm

    NAS vehicles

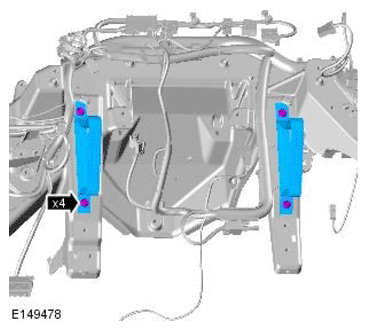

  24. G11704290

    Torque Specification: 9 Nm

    All vehicles

  25. CAUTION: Install all the bolts finger tight before final tightening.

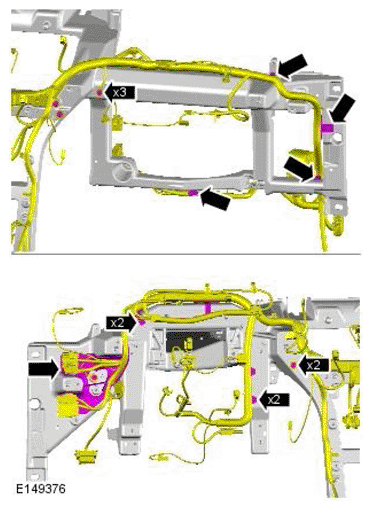

    G11704291

    Torque Specification: 12 Nm

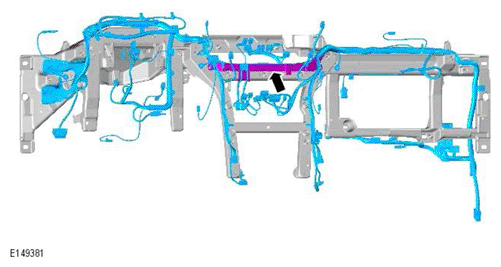

  26. G11704292

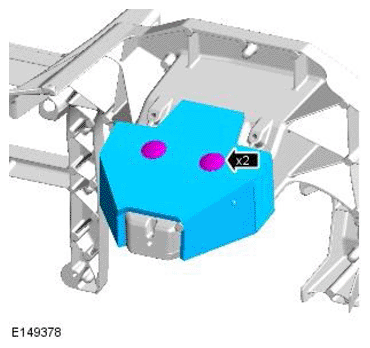

  27. G11704293
