Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

  1. Refer to: UPPER GLOVE COMPARTMENT .

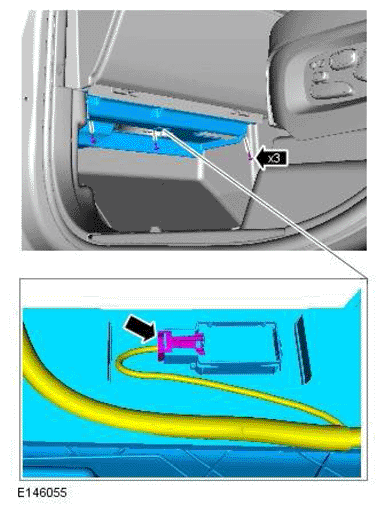

  2. G11701292
  3. G11704263
  4. G11704264
  5. G11704265

    Vehicles with business seats

  1. NOTE: Repeat the procedure for the other side.
    G11704266

    All vehicles

  1. G11704267
  2. G11704268
  3. G11763777

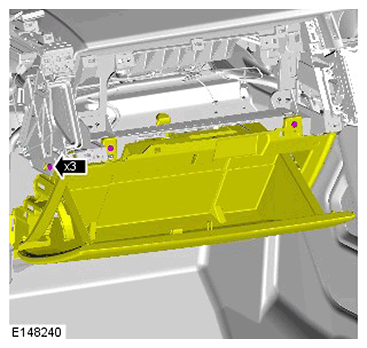

  4. G11757657
  5. CAUTION: Install all the bolts finger tight before final tightening.

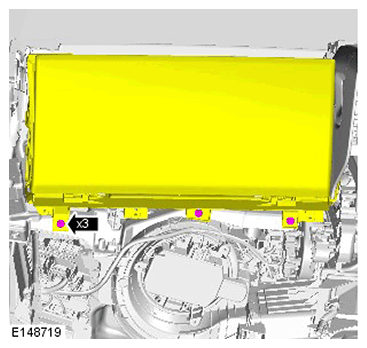

    G11757658

    Torque Specification: 9 Nm

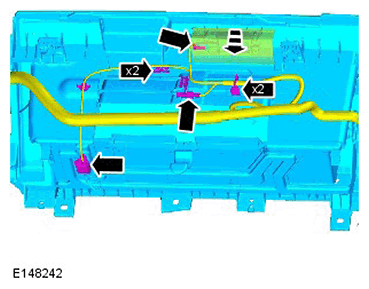

  6. G11757659
  7. NOTE: Do not disassemble further if the component is removed for access only.
    G11704272
