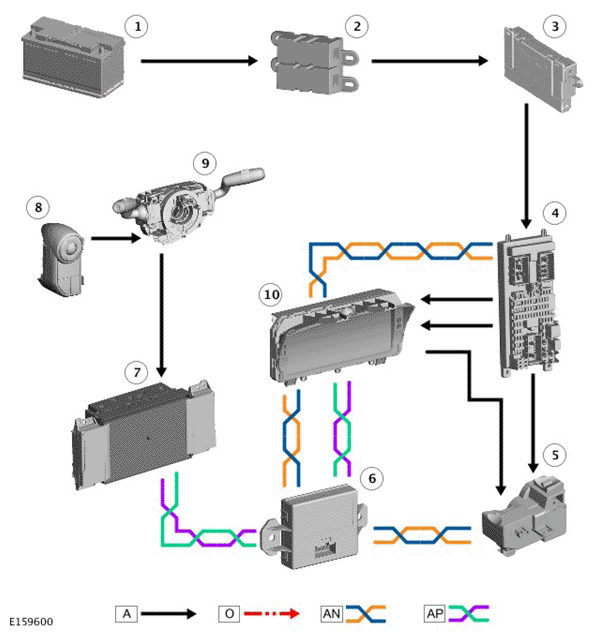

Control Diagram
NOTE:
A
= Hardwired; O
= LIN Bus; AN
= High speed CAN Powertrain system bus; AO
= Medium speed CAN Body system bus; AP
= MS CAN Comfort system bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box 2 (BJB) |
| 3 | Battery Junction box (BJB) |
| 4 | Central Junction Box (CJB) |
| 5 | Electric Steering Column Lock (ESCL) control module |
| 6 | Gateway Module (GWM) |
| 7 | Touch Screen (TS) |
| 8 | Left steering wheel switchpack |
| 9 | Clockspring (CLKSPG) |
| 10 | Instrument Cluster (IC) |
