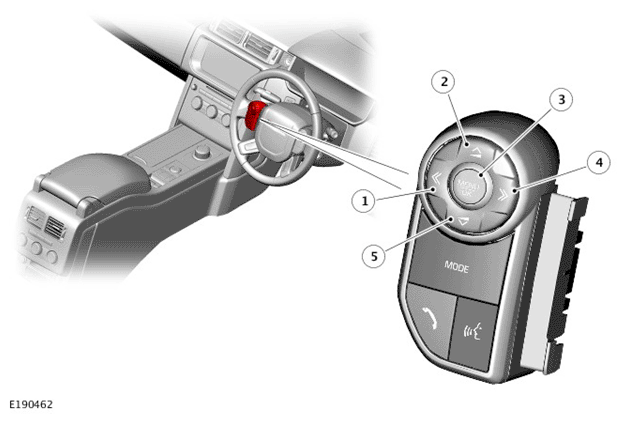

MENU/OK Switch
| ITEM | DESCRIPTION |
|---|---|
| 1 | Left selection switch |
| 2 | Up selection switch |
| 3 | MENU/OK switch |
| 4 | Right selection switch |
| 5 | Down selection switch |
The left steering wheel switchpack contains the controls for the Instrument Cluster (IC) menu selection. The menu switch comprises a central MENU/OK switch and a four-way switch to allow menu selection UP/DOWN/LEFT/RIGHT. The switchpack is also used to control the audio system.
For additional information, refer to: AUDIO SYSTEM .
Once all current displayed messages are cleared by pressing the MENU/OK switch for each message, the IC menu is displayed with a single press of the MENU/OK switch.
The driver can navigate to the required menu using the UP/DOWN and LEFT/RIGHT switches. When the required menu is highlighted it can be selected using the MENU/OK switch.
When the 'MENU/OK' switch is pressed to select the required menu, the screen will display a sub-menu for that option or activate the selected item. Scroll arrows to the left of the menus show that additional menu items are available that are not visible in the current view. When the arrow is displayed brightly it indicates that additional menu items are available in that direction.
The current displayed menu can be closed by pressing the left switch on the menu switch. If sub-menus are open, pressing and holding the left button on the menu control will close the sub-menus. The menu will close automatically if:
- No selection is made in the main menu within 10 seconds of opening.
- A selection is made in the main menu and no further selection is made within 30 seconds. If a selection is made within the 30 second period, the timer will reset and a further 30 seconds will elapse before the menu automatically closes if no further selections are made.
- Main Menu
- Displays the available main menus.
- Driving Features
- Displays all active warning messages which can be scrolled through using the LEFT/RIGHT switches.
- Head Up Display (HUD)
- Displays the HUD options
- Trip Computer
- Functions of the trip computer
- Instrument Display
- Allows the display to be customized for the driver
- Vehicle Set-Up
- Enable/Disable functions of the vehicle, for example Enable/Disable audible warning when the vehicle is locked.
- Service Menu
- Display vehicle information, for example Vehicle VIN.
