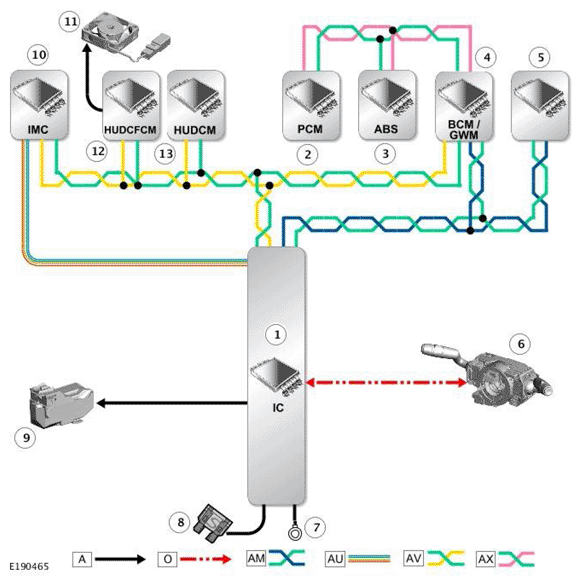

Control Diagram
A = HARDWIRED; O = LIN BUS; AM= HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS BUS; AU = AUTOMOTIVE PIXEL LINK 2 (APIX2); AV = HS CAN COMFORT BUS; AX= FLEXRAY
| ITEM | DESCRIPTION |
|---|---|
| 1 | Instrument Cluster (IC) |
| 2 | Powertrain Control Module (PCM) |
| 3 | Anti-lock Brake System Control Module (ABS) |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | System modules on the HS CAN chassis bus |
| 6 | Steering Wheel Module (SWM) |
| 7 | Ground |
| 8 | Supply |
| 9- | Electric Steering Column Lock (ESCL) Control Module |
| 10 | Infotainment Master Controller (IMC) |
| 11 | Head Up Display cooling fan |
| 12 | Head Up Display cooling fan control module (HUDCFCM) |
| 13 | Head Up Display control module (HUDCM) |
