Removal And Installation: Removal

WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.
  • After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow these instructions may result in personal injury.
  • This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the battery ground cable.

    For additional information, refer to: Specifications .

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. For additional information, refer to: Fuel Filler Door Assembly - Vehicles Without: Diesel Exhaust Fluid .
  4. Remove the RH rear wheel and tire.
    • Torque Specification: 140 Nm

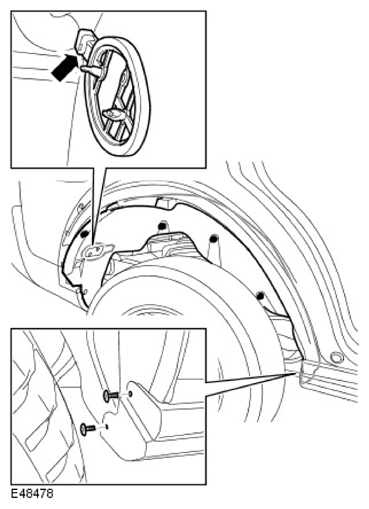

  5. G11592633

    Remove the fender splash shield.

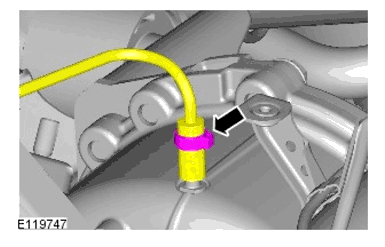

  6. G11600452
  7. NOTE: Discard the retaining clip.
    G11600416

    Remove the tamper proof cover from the fuel tank filler pipe hose clip.

  8. CAUTION: Make sure that all openings are sealed. Use new blanking caps.

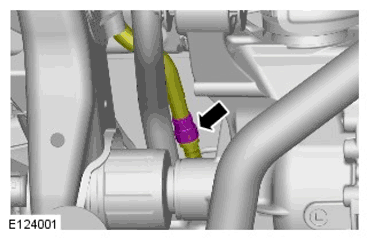

    G11600454

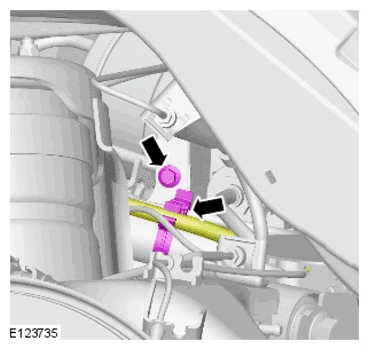

  9. G11600484
    • Torque Specification: 4 Nm
  10. CAUTION: Make sure that all openings are sealed. Use new blanking caps.

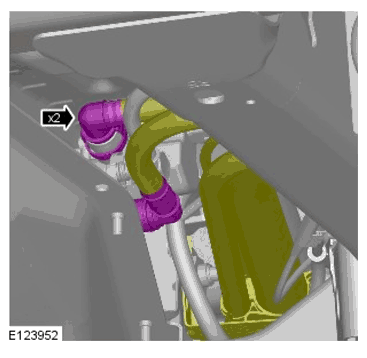

    G11600485

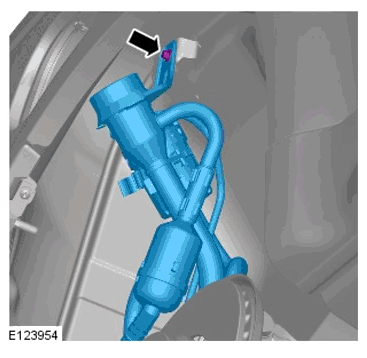

  11. G11600486
    • Torque Specification: 4 Nm
