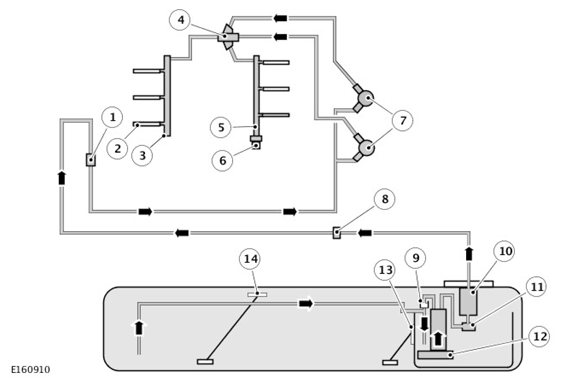

Fuel System Schematic Diagram
WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel line connection |
| 2 | Fuel injector (6 off) |
| 3 | Left side fuel rail |
| 4 | High Pressure (HP) fuel line connection |
| 5 | Right side fuel rail |
| 6 | Fuel Rail Pressure and Temperature (FRPT) sensor |
| 7 | HP fuel pumps |
| 8 | Low Pressure (LP) fuel sensor |
| 9 | Jet pump |
| 10 | Fuel filter |
| 11 | Pressure Relief Valve (PRV) |
| 12 | Fuel pump module assembly |
| 13 | Fuel level sensor - Rear |
| 14 | Fuel level sensor - Front |
