Fuel Tank And Lines - All Vehicles Except NAS Vehicles
WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

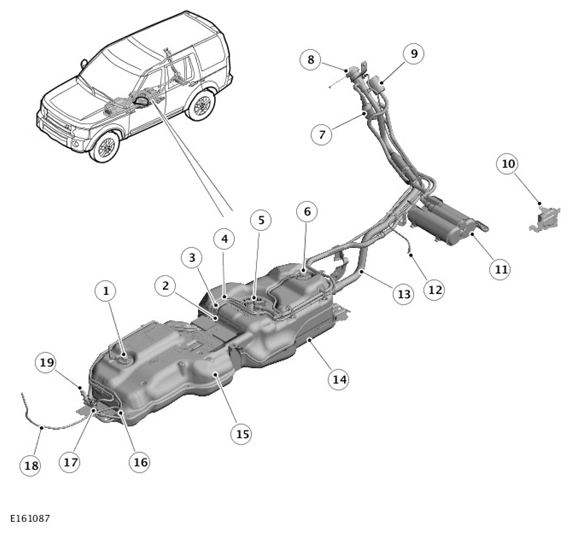

| ITEM | DESCRIPTION |
|---|---|
| 1 | Front Roll Over Valve (ROV) |
| 2 | Pipe - fuel vapor from charcoal canister to purge valve |
| 3 | Pipe - vent from front ROV |
| 4 | Pipe - fuel delivery line to engine mounted fuel pumps |
| 5 | Fuel delivery module |
| 6 | Rear ROV |
| 7 | Liquid Vapor Separator (LVS) |
| 8 | Fuel filler cap |
| 9 | Charcoal canister breather pipe |
| 10 | Fuel Pump Driver Module (FPDM) |
| 11 | Charcoal canister |
| 12 | Pipe - rear differential breather (Reference only) |
| 13 | Filler pipe |
| 14 | Heat shield |
| 15 | Cover |
| 16 | Pipe - charcoal canister breather connection to purge valve |
| 17 | Pipe - fuel delivery line connection |
| 18 | Pipe - fuel delivery line to engine mounted high pressure fuel pumps |
| 19 | Low Pressure (LP) fuel sensor |
