Fuel Pump Module
WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

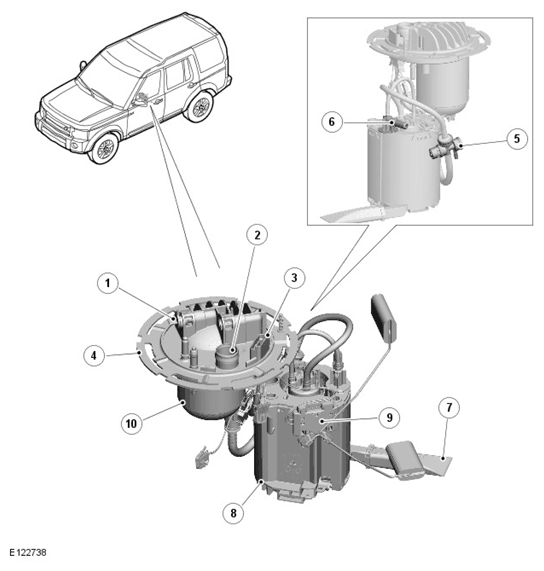

| ITEM | DESCRIPTION |
|---|---|
| 1 | Fuel delivery outlet connection |
| 2 | Vent pipe connection |
| 3 | Electrical connector |
| 4 | Locking ring |
| 5 | Pressure relief valve |
| 6 | Suction pipe connection |
| 7 | Fuel pick-up filter |
| 8 | Fuel pump |
| 9 | Rear fuel level sensor |
| 10 | Fuel filter |
The fuel pump module is located inside the fuel tank and comprises three main components; a fuel pump, a remote fuel pick-up and a top flange assembly.
