Fuel Filler Pipe And Tank Breather Assembly
WARNING: This page is about a different car, the 2016 Land Rover LR4, 2015 Land Rover LR4, and 2014 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.

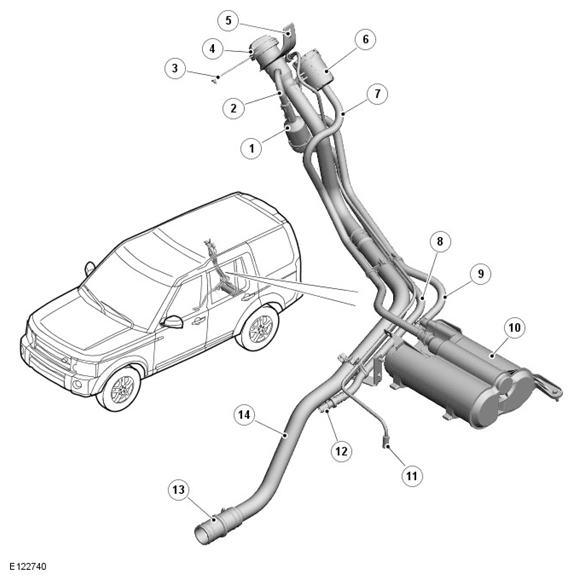

Fuel Filler Pipe Assembly - All Vehicles Except NAS
| ITEM | DESCRIPTION |
|---|---|
| 1 | Liquid Vapor Separator (LVS) |
| 2 | Pipe - fuel vapor vent |
| 3 | Filler cap lanyard |
| 4 | Filler cap |
| 5 | Bracket |
| 6 | Charcoal canister breather/dust filter |
| 7 | Pipe - breather |
| 8 | Pipe - fuel vapor vent |
| 9 | Pipe - fuel vapor to charcoal canister |
| 10 | Charcoal canister |
| 11 | Pipe - rear differential breather (Reference only) |
| 12 | Pipe - fuel vapor connection |
| 13 | Hose - fuel filler pipe to fuel tank spit back flap |
| 14 | Pipe - fuel filler |
